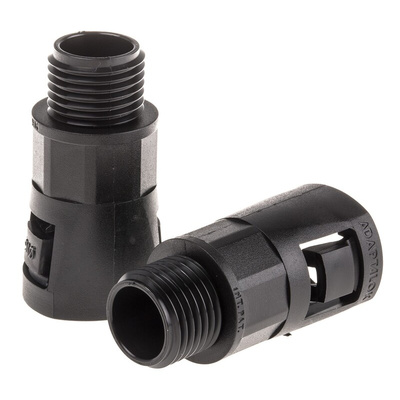

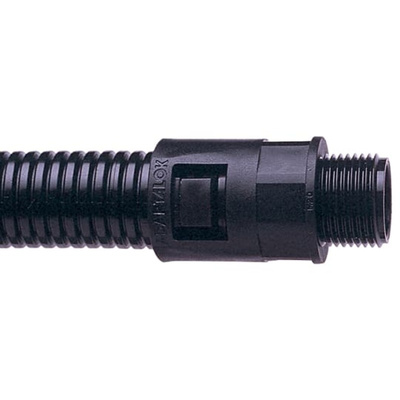

7TCA296000R0350 AL16/M16/A/BL, Adaptaflex Straight, Conduit Fitting, 16mm Nominal Size, M16, Nylon 66, Black

Adaptaflex Conduit Fitting, Push-and-Twist Locking, IP66 Rating - AL Series - 7TCA296000R0350 AL16/M16/A/BL

When you're running cables and need to be sure they're fully shielded, go for this conduit fitting from Adaptaflex. Thanks to its external male M16 thread, it links a connected conduit with a threaded entry point or knockout. It's carefully constructed to provide a precise and leak-free fit for your 16mm ducting. Once paired, your assembly earns itself an IP66 rating, meaning there's no chance of dust getting in. It's also sealed against jets of water, even at high pressures. This makes the product a great shout for use in tough settings where washdowns are a regular event.

Features & Benefits

• Comes in a pack of 5, so you get plenty to cover several sections of conduit
• Simple push-and-twist mechanism means installation's a breeze
• Resists tampering as releasing the fitting needs a screwdriver or special tool
• Hexagonal body gives you the option of creating an even tighter seal with a simple spanner

Applications

• Telecommunications networks
• Robotics systems
• Industrial automation

What material is this fitting made from?

It's made from robust polyamide construction that resists impact and abrasion, meaning this fitting is built to last in busy spaces.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Adaptalok System accessories

Datasheet - 7TCA296000R0350 AL16/M16/A/BL

Catalogue - Flexible Non-metallic Conduit Systems
