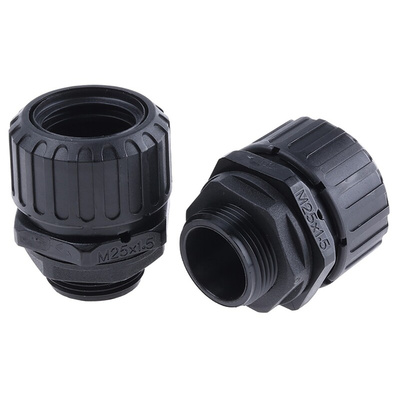

7TCA296000R1692 ASF28/M25/A/BL, Adaptaflex Straight, Conduit Fitting, 25mm Nominal Size, M25, Nylon 66, Black

Adaptaflex Conduit Fitting, IP67 Rating, M25 Thread - ASF Series - 7TCA296000R1692 ASF28/M25/A/BL

In need of a way to link together lengths of conduit? Reach for this conduit fitting from Adaptaflex to achieve a tight yet flexible seal. It has an external M25 thread that you can screw directly into your compatible conduit pipe or hose without needing any tools. A nylon 66 body means it's not only strong but also resistant to oil, fuel and grease, making it a great choice for mechanical applications. This fitting has insulating properties too, for safe use with electronic equipment.

Features & Benefits

• Comes with a locknut included for fuss-free installation directly into your knockout
• Flame-retardant and halogen-free so it won't catch alight or release toxic fumes during a fire
• IP67 rating when used as part of the Adaptaseal system, indicating it's protected from water and dust
• Broad operating temperature between -40°C and +105°C indicates it performs reliably in diverse conditions

Applications

• Factory maintenance
• Automotive manufacture
• Consumer electronics

How much does this conduit fitting weigh?

As it weighs just 19g, this is a light unit that puts minimal strain on your conduit system.

Supplied with
type":"Supplied with",

Locknut

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Adaptaseal system - Fittings and accessories

Datasheet - 7TCA296000R1692 ASF28/M25/A/BL
