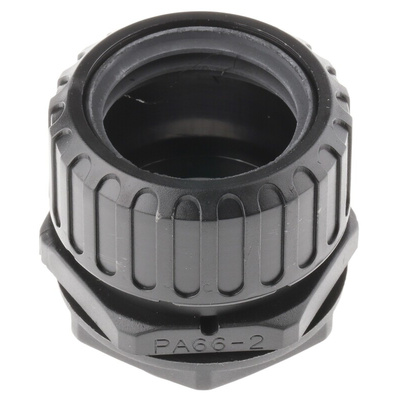

PF34/M32/A/BL, Adaptaflex Straight, Conduit Fitting, 32mm Nominal Size, M32, Nylon 66, Black

Adaptaflex Conduit Fitting, Halogen Free, IP67 Rating - PF Series - PF34/M32/A/BL

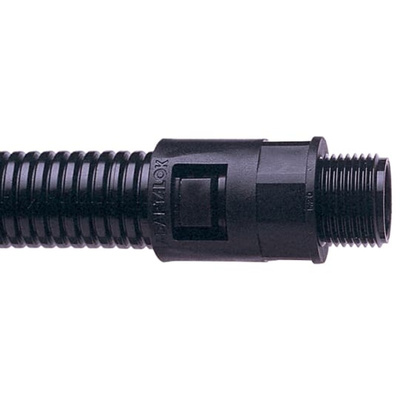

Keep your system joined up with this straight conduit fitting from Adaptaflex. You insert it into a threaded entry or knockout to assemble a robust and secure protective run for your cabling. It's a versatile option for use with type PA, CP, PR and PF conduits. The compression-style fitting is liquid-tight and an IP67 rating tells you the fitting stays waterproof when immersed to a depth of 1m. It's supplied with a locknut to hold it securely in place, even in the face of vibration.

Features & Benefits

• Straight orientation for versatile use
• Handles environments where temperatures reach -40ºC to +120ºC
• Low-smoke properties make it suitable for use in enclosed public spaces

Applications

• Public buildings
• Factories
• Scientific laboratories

What's this conduit fitting made from?

This conduit fitting is made from nylon 66, which combines strength with resistance to heat and wear. This makes it an ideal material for protecting your cables.

What size is this conduit fitting?

This conduit fitting has a nominal size of 32mm, meaning you can use it to protect fairly chunky cable installations.

Supplied with
type":"Supplied with",

Locknut

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Adaptaseal system - Fittings and accessories

Datasheet - PF34/M32/A/BL
