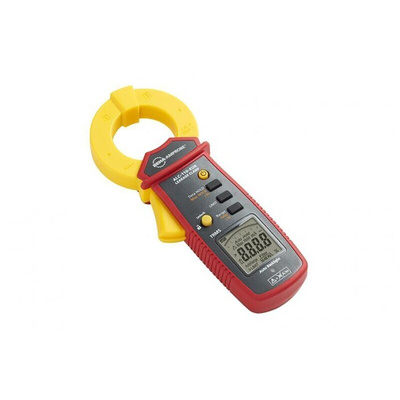

ALC-110-EUR, Beha-Amprobe ALC-110 Clamp Meter, Max Current 60A ac CAT III 600 V

True-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms
Max readings and hold function
Measurement of earth leakage current
Measurement of differential leakage currents
Measurement of leakage current through the earth (PE) conductor
Tracing the source of earth leakage current
Measurement of current consumption of appliances in service or customer service sector without interruption to the circuit
Low influence of external low frequency magnetic fields ≤ 30 A/m, operating class 2 @IN 3.500 mA – 600.0 mA
Mechanical lock of the jaw, jaw opening 30 mm (1.2 in)
Highest resolution of 0.001 mA, measure up to 60 A
Selectable limits 0.25mA, 0.5mA, 3.5mA, 10mA, 12mA
Selectable filters
Low Pass filter function for appliance measuring
50/60 Hz filter
No filter
Selectable filter function removes unwanted noise
Broad frequency range 15 Hz to 1 kHz which makes this clamp ideal for a wide range of applications including industrial and railway application
Auto power-off to save battery life
Backlit display, auto backlight off and auto power off for extended battery life
