22035000 TSH 35, Bopla Polyamide DIN Rail Holder for Use with TS 35 (Top Hat DIN Rail), 122 x 88 x 18mm

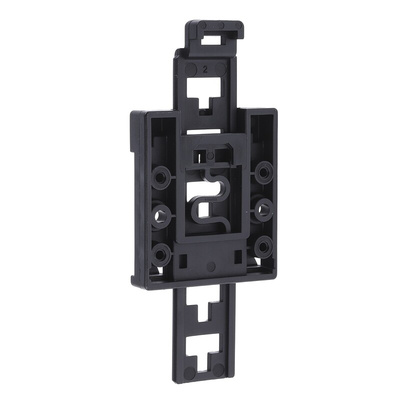

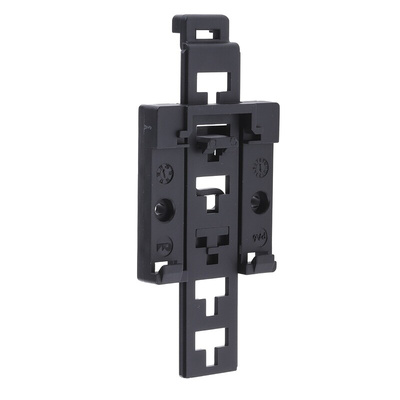

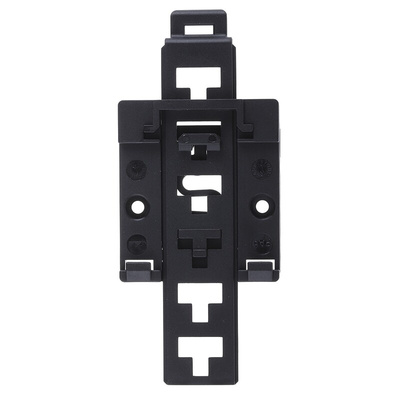

Bopla Universal DIN Rail Holder TSH 35

The TSH 35 Din rail holder, for use with all Bopla enclosures that support DIN rails. This DIN rail holder consists of a base and a bolt, the bolt can be snapped into the base in various positions. It is fitted approximately in the middle of the enclosure, and the bolt projecting from the enclosure base can be disconnected from the rail by means of a screwdriver.

How to assemble

For assembly, insert the screws from the inside of the enclosure this guarantees full insulation protection. On small enclosures, the part of the bolt which projects upwards can be pinched off. In the case of very wide enclosures, it may be necessary to fit two DIN rail holders.

Features and Benefits

• Material: Polyamide
• Holder consists of two pieces - the foot and the latch
• Colour: Black
• Ideal for use with enclosure heights between 70 mm and 160 mm

What’s in the box?

• 1 DIN rail holder, screws for enclosure mounting

Typical Applications

Bopla Universal DIN rail holder TSH 35 are typical used in general purpose enclosures that support Top Hat DIN Rail applications

Datasheet

22035000 Line Drawing
