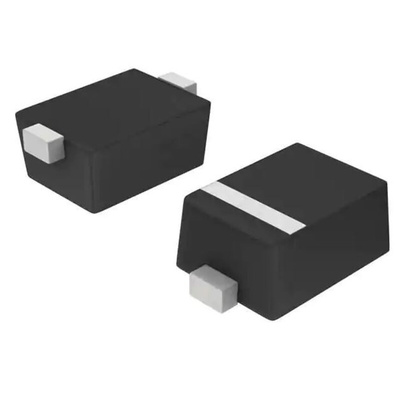

onsemi 200mA, Schottky Diode, 2-Pin SOD-923 NSR0240P2T5G, Диод

Schottky rectifiers are optimized for very low forward voltage drop and low leakage current and are used in a wide range of dc-dc converter, clamping and protection applications in portable devices. NSR0240P2 in a SOD-923 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.

Very Low Forward Voltage Drop - 460 mV @ 100 mA
Low Reverse Current - 0.2 A @ 25 V VR
200 mA of Continuous Forward Current
Power Dissipation of 240 mW with Minimum Trace
Very High Switching Speed
Low Capacitance - CT = 7 pF
NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements, PPAP capable
This is a Pb-Free Device
End Products
Mobile Handsets
MP3 Players
Applications \t \t
LCD and Keypad Backlighting
Camera Photo Flash
Buck and Boost dc-dc Converters
Reverse Voltage and Current Protection
Clamping & Protection

Datasheet NSR0240P2T5G
