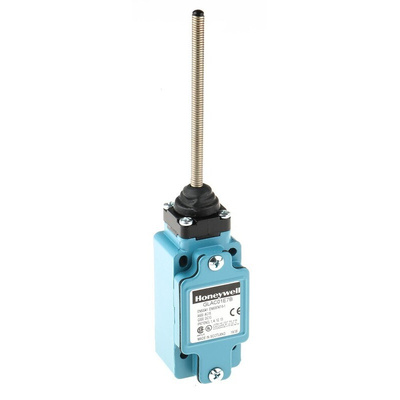

GLAC01E7B, Honeywell GLA Series Coil Spring Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 6A Max

Honeywell Coil Spring Limit Switch, NO/NC, 6A Maximum Current - GLA Series - GLAC01E7B

Use this limit switch from Honeywell to help you switch your electrical connection on and off. It has a coil spring-type actuator that's designed to move with the shape of the object it makes contact with. The contacts are made from a silver alloy material that's highly conductive and corrosion-resistant for a reliable connection. Thanks to its compact dimensions of 145.8 (length) x 42 (width) x 42mm (depth), this unit is suitable for installation in tight spaces. This type of switch is commonly used for counting objects on conveyors.

Features & Benefits

• Wide operating temperature range of -25°C to +85°C for use in harsh environments
• Long mechanical lifespan of up to 15 million operations for reliable performance
• Galvanically isolated contacts help prevent electrical interference
• IP67 (ingress protection) rating means it's protected against dust and submersion in 1m of water for up to 30 minutes

Applications

• Construction machinery
• Railroad locomotives
• Conveyors
• Machining centres
• Automotive assembly lines

Can this limit switch be taken apart for repairs?

Yes, this limit switch has a three-part modular design that makes it straightforward to dismantle, adjust and maintain.

Approvals

UL; CSA

Approvals

UL/ UL listed for Canada

Honeywell Limit Switch Comparison

Installation Instructions

Datasheet

Product Range Guide - Limit Switches & Machine Safety
