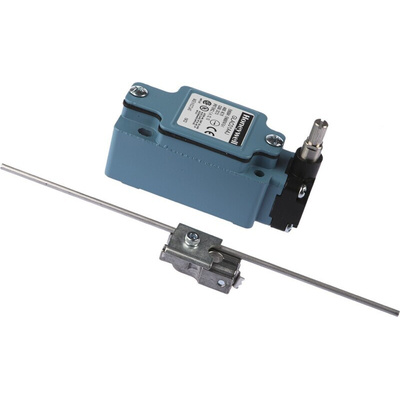

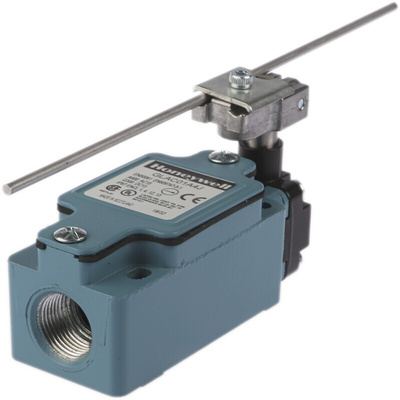

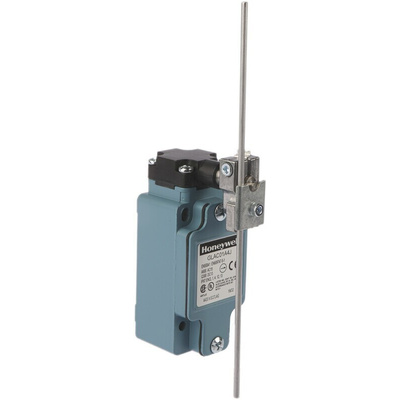

GLAC01A4J, Honeywell GLA Series Plunger Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 10A Max

Honeywell Plunger Limit Switch, NO/NC, 10A Maximum Current - GLA Series - GLAC01A4J

Turn the electrical connection to your machinery on and off with the help of this limit switch from Honeywell. Its three-part modular design makes it simple to disassemble for ease of maintenance. The plunger-type actuator pushes downward to trigger the switch without taking up too much space. The switch's compact dimensions of 82 (length) x 42 (width) x 42mm (depth) make it a practical choice for use in applications where space is limited.

Features & Benefits

• Snap-action contacts for fast switching response
• Wide operating temperature range of -25°C to +85°C for use in demanding environments
• Die-cast zinc housing is impact and corrosion-resistant for use in heavy-duty applications
• Long mechanical lifespan of up to 15 million operations for long-lasting use

Applications

• Machine tools
• Platform lifts
• Agricultural equipment
• Industrial doors
• Mobile cranes

Can this limit switch be exposed to high levels of moisture and dust?

Yes, this limit switch's IP67 (ingress protection) rating means it's fully protected against dust and can be submerged in 1m of water for up to 30 minutes without being damaged.

Approvals

UL; CSA

Approvals

UL/ UL listed for Canada
