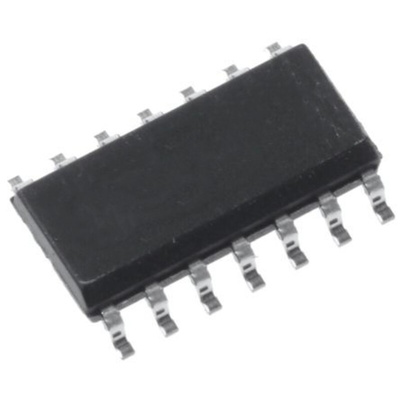

The MM74HCT14 utilizes advanced silicon-gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS-TTL loads. The 74HCT logic family is functionally and pinout-compatible with the standard 74LS logic family. Inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Typical Propagation Delay: 13ns
Wide Power Supply Range: 4.5V-5.5V
Low Quiescent Current: 10μA Maximum
Low Input Current: 1μA Maximum
Fanout of 10 LS-TTL Loads
Typical Hysteresis Voltage: 0.6V at VCC = 4.5V
TTL, LS Pin-out and Input Threshold Compatible
Applications
This product is general usage and suitable for many different applications.
Datasheet MM74HCT14M| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
