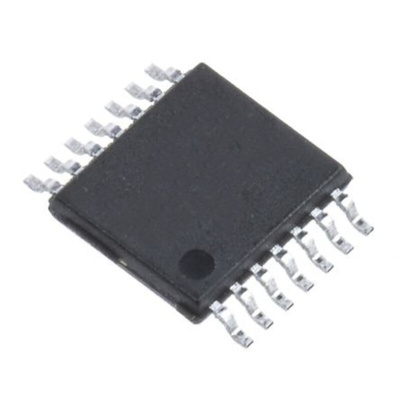

onsemi 74LCX07MTCX, Hex Buffer Logic Gate, 14-Pin TSSOP, Логический вентиль

The LCX07 contains six buffers. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The outputs of the LCX07 are open drain and can be connected to other open drain outputs to implement active HIGH wire AND or active LOW wire OR functions. The 74LCX07 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

5V tolerant inputs
2.3V to 5.5V VCC specifications provided
2.9 ns tPD max (VCC = 3.3V), 10 μA ICC max
Power down high impedance inputs and outputs
+24 mA output drive (VCC = 3.0V)
Implements patented noise/EMI reduction circuitry
ESD performance: Human body model > 2000V Machine model > 200V
Leadless Pb-Free DQFN package
Applications
This product is general usage and suitable for many different applications.

Datasheet 74LCX07MTCX
