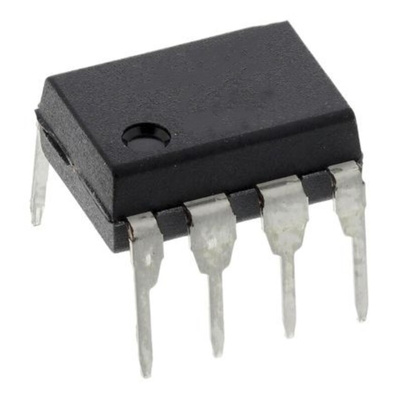

The 6N135M, 6N136M, HCPL4503M, HCPL2530M and HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor. The HCPL4503M has no internal connection to the phototransistor base for improved noise immunity.An internal noise shield provides superior common mode rejection of up to 50,000 V/μs.
High Speed –1 MBit/s
Dual-Channel: HCPL2530M, HCPL2531M
CTR Guaranteed 0°C to 70°C
No Base Connection for Improved Noise Immunity (HCPL4503M)
Superior CMR of 15,000 V/μs Minimum (HCPL4503M)
End Products
Energy Generation & Distribution
Industrial Motor
Uninterruptible Power Supply
Applications
Line Receivers
Pulse Transformer Replacement
Output Interface to CMOS-LSTTL-TTL
Wide Bandwidth Analog Coupling
