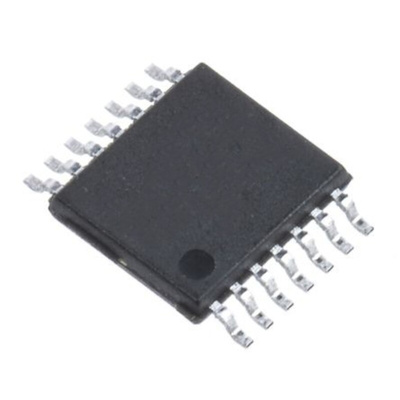

ON Semiconductor 74VHC125MTCX, Voltage Level Shifter Buffer 1, 14-Pin TSSOP, Транслятор

The VHC125 contains four independent non-inverting buffers with 3-STATE outputs. It is an advanced high-speed CMOS device fabricated with silicon gate CMOS technology and achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. An input protection circuit insures that 0V to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery backup. This circuit prevents device destruction due to mismatched supply and input voltages.

High Speed: tPD = 3.8 ns (typ) at VCC = 5V
Lower power dissipation: ICC = 4 μA (max) at TA = 25°C
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.8V (max)
Pin and function compatible with 74HC125
Applications
This product is general usage and suitable for many different applications.

Datasheet 74VHC125MTCX
