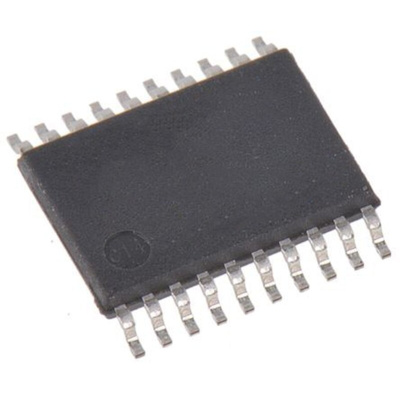

ON Semiconductor 74VHC244MTCX, Voltage Level Shifter Buffer 2, 20-Pin TSSOP, Транслятор

The VHC244 is an advanced high speed CMOS octal bus buffer fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The VHC244 is a non-inverting 3-STATE buffer having two active-LOW output enables. These devices are designed to be used as 3-STATE memory address drivers, clock drivers, and bus oriented transmitter/receivers. An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.

High Speed: tPD = 3.9ns (typ) at VCC = 5V
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.6V (typ)
Low power dissipation: ICC = 4 μA (max) @ TA = 25°C
Pin and function compatible with 74HC244
Applications
This product is general usage and suitable for many different applications.

Datasheet 74VHC244MTCX
