74LCX Family, On Semiconductor
Advanced High-Speed (low-voltage) CMOS Logic
Operating Voltage Range: 2.0 to 3.6V
5V tolerant inputs & outputs

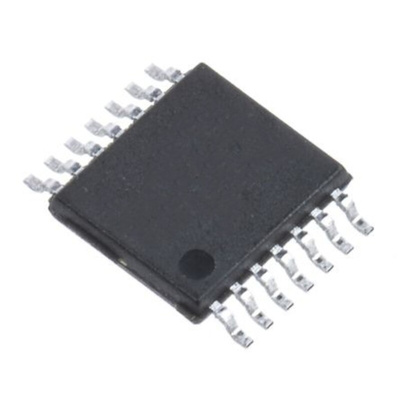

The MC74LCX08 is a high performance, quad 2-input AND gate operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTLcompatible outputs offer improved switching noise performance. AVI specification of 5.5V allows MC74LCX08 inputs to be safely driven from 5V devices. Current drive capability is 24mA at the outputs.
Designed for 2.7 to 3.6V VCC Operation
5V Tolerant Inputs - Interface Capability With 5V TTL Logic
LVTTL Compatible
24mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requirements
Latchup Performance Exceeds 500mA
ESD Performance: Human Body Model >2000V, Machine Model >200V
74LCX Family
