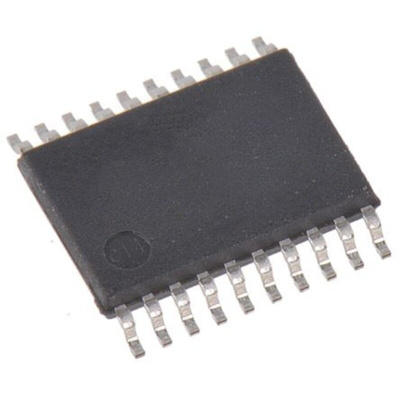

ON Semiconductor 74LCX245MTCX, Voltage Level Shifter 1 Bi-Directional, 20-Pin TSSOP, Транслятор

The LCX245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage (2.5V and 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The T/R# input determines the direction of data flow through the device. The OE# input disables both the A and B ports by placing them in a high impedance state. The LCX245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

5V tolerant inputs and outputs
2.3V to 3.6V VCC specifications provided
7.0 ns tPD max (VCC = 3.3V), 10 μA ICC max
Power down high impedance inputs and outputs
Supports live insertion/withdrawal (Note 1)
±24 mA output drive (VCC = 3.0V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance: Human body model > 2000V Machine model > 200V
Leadless DQFN Pb-Free package
Applications
This product is general usage and suitable for many different applications.

Datasheet 74LCX245MTCX
