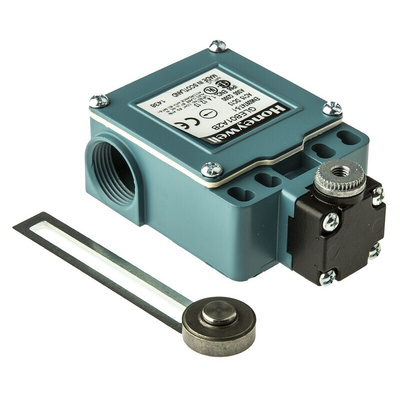

GLEB01A2B, Honeywell GLE Series Adjustable Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 300V ac Max, 6A Max

Honeywell GLE Series Limit Switches

The GLE series from Honeywell forms part of the larger GLS limit switches range. GLE limit switches are compact, rugged and versatile. With a small footprint, these limit switches are ideal for applications where a limited amount of space is available. This series are construted from three-conduit rugged housing and can operate in harsh environments.

Features:

• Galvanically isolated contacts give you control over two separate circuits.
• The NC (normally closed) contacts are direct acting. This ensures that they will open when actuated.
• The use of a dual bearing design for the side rotary actuators enhances the mechanical life of the unit while reducing die loading.
• Able to withstand wash downs, shock and vibrations.
• Reliable and accurate.
• Wide operating temperature range of -40 °C to +85 °C.
• 20 mm to 22 mm mounting holes.

Benefits:

• GLE limit switches have an outstanding mechanical lifespan, to 10 million operations.
• The actuators or heads can be positioned at increments of 90°. This offers you incredible flexibility with your designs and allows you to use these limit switches for a range of environments or applications.
• Models with side rotary actuator heads can be set up so that the actuation is clockwise, anti clockwise or both.
• You can easily customise this range of limit switches due to the modular design of the unit. Bodies, contact blocks and heads can all be adjusted and customised.
• Featuring a removable contact block, these limit switches are incredibly easy to wire up. They are designed for easy installation.
• Various conduit sizes are available allowing these limit switches to be used for different global applications.

Product Applications:

Suitable product applications include:
• Elevators
• Scissor lifts and platform lists
• Escalators and moving stairs
• Lift trucks
• Off-road equipment
• Transportation equipment
• Commercial appliances
• Material handling equipment
• Packaging machinery
• Textile machinery
• Construction machinery
• Machine tooling equipment
• Agricultural equipment

What is the difference between the GLC, GLD and GLE series?

The difference that separates the series is the housing. GLE limit switches feature 3-conduit metal housing, while the GLC series have single conduit metal housing and GLD limit switches have plastic housing.

Standards

IEC/EN 60947-5-1
While IEC/EN 609747-1 covers general rules relating to low voltage switchgear and controlgear, IEC/EN 60947-5-1 specifically relates to control circuit devices and switching elements. The standard monitors the characteristics of devices, the electrical and mechanical requirements and the functional requirements.

EN50047
GLC and GLD limit switches are constructed from housing that meets EN50047. EN50047 applies to position switches with an automatic return actuator. Models that meet EN50047 feature standardised characteristics and dimensions (30.5 x 31.1 x 68 mm).

IP 66
A rating of IP 66 ensures that the limit switch units are protected against dust and low-pressure jets of water.

Sealed to NEMA 1, 4, 12, 13
NEMA 1 states that enclosures can be used indoor and offers a degree of protection against contact with the equipment enclosed.
NEMA 4 states that enclosures can be used either indoor or outdoor and provide protection against windblown rain and dust, hose directed water and splashing water.
NEMA 12 states that enclosures are intended for use indoors and offer some protection from dust, dirt, falling dirt and dripping non-corrosive liquids.
NEMA 13 states that enclosures are used indoors and offer a level of protection from oil, non-corrosive coolants, spraying water and dust.

Warning

GLE limit switches are not safety devices. They should be not used as emergency stop or safety devices. They must not be used in applications where personal injury could occur as a result of product failure.

Approvals

UL, CSA, CE, CCC

Honeywell Roller Lever Limit Switch, 300V AC, 250V DC - GLE Series - GLEB01A2B

Use this limit switch from Honeywell to turn your electrical connection on or off. The switch's actuator head connects to power cables and your machine terminal. Its roller lever actuator triggers the switch contacts with a cam and physically turns the switch body to make or break the electrical circuit. Its snap-action contacts offers a rapid mechanical response for precise switching in industrial applications. The three-part modular design makes it simple to adjust, install and maintain.

Features & Benefits

• IP67 (ingress protection) rating means it's protected against dust and submersion in up to 1m of water for 30 minutes
• Die-cast zinc housing is highly durable and resistant to corrosion and rust
• One normally open (NO) and one normally closed (NC) contact for dual-state configuration

Applications

• Elevators
• Textile machinery
• Escalators and moving stairs
• Transportation hubs
• Lift trucks

How long will this limit switch last?

This limit switch has a long mechanical lifespan of up to 10 million operations, so it will last a long time.

Can this limit switch withstand extreme temperatures?

Yes. This limit switch has a wide operating temperature range of -40°C to +85°C for use in extreme environments.

Approvals

CSA; UL; CE

Approvals

UL/ UL listed for Canada
