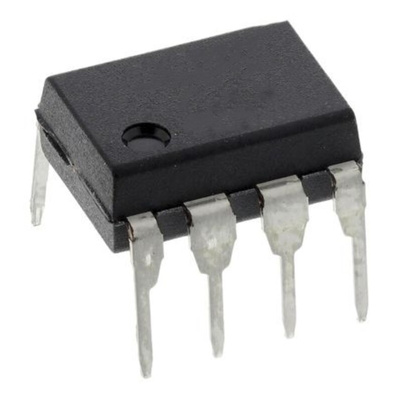

onsemi, FOD3120 IGBT, MOSFET Output Optocoupler, Through Hole, 8-Pin PDIP

High noise immunity characterized by 35kV/μs minimum common mode rejection
2.5A peak output current driving capability for most 800V/20A IGBT
Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail
Wide supply voltage range from 15V to 30V
Fast switching speed
400ns max. propagation delay
100ns max. pulse width distortion
Under-Voltage LockOut (UVLO) with hysteresis
Extended industrial temperate range, -40°C to 100°C temperature range
RDS(ON) of 3Ω (typ.) offers lower power dissipation
>8.0mm clearance and creepage distance (option ’T’)
Uninterruptible Power Supply
Industrial Inverter
Isolated IGBT/Power MOSFET Gate Drive
Induction Heating
Applications
AC-DC Merchant Power Supply
Energy Generation & Distribution
Industrial Motor
Uninterruptible Power Supply

Datasheet FOD3120
