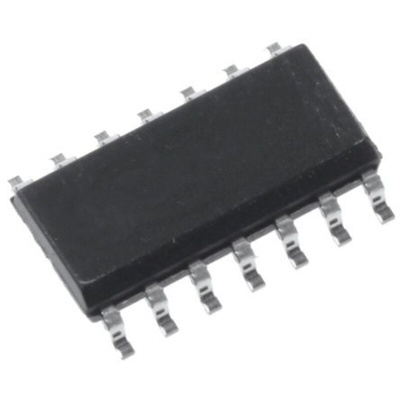

onsemi MM74HC08M 2-Input AND Logic Gate, 14-Pin SOIC, Логический вентиль

The MM74HC08 AND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Typical propagation delay: 7 ns (tPHL), 12 ns (tPLH)
Fanout of 10 LS-TTL loads
Quiescent power consumption: 2 μA maximum at room temperature
Low input current: 1 μA maximum
Applications
This product is general usage and suitable for many different applications.

Datasheet MM74HC08M
