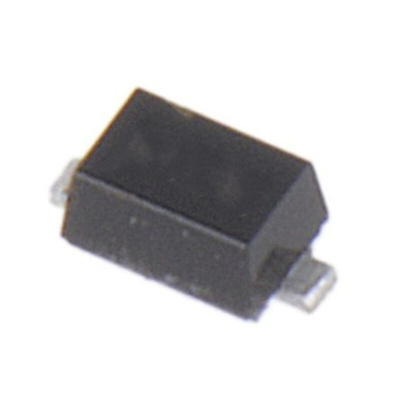

MM5Z36VT1G, onsemi, 34V Zener Diode 500 mW SMT 2-Pin SOD-523, Стабилитрон

These Zener Diode Voltage Regulators are packaged in the SOD-523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables and high density PC boards.

Standard Zener Breakdown Voltage Range: 2.4V to 75V
Steady State Power Rating of 500mW
Small Body Outline Dimensions: 0.047in x 0.032in (1.20mm x 0.80mm)
Low Body Height: 0.028in (0.7mm)
ESD Rating of Class 3 (>16kV) Human Body Model

Cathode Indicated by Polarity Band
Lead Finish: 100% Matte Sn (Tin)
Qualified Maximum Reflow Temperature: 260C

Pb-Free Packages are Available
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Applications
Cellular phones, hand held portables, and high density PC boards, where space is at a premium.

Datasheet MM5Z36VT1G
