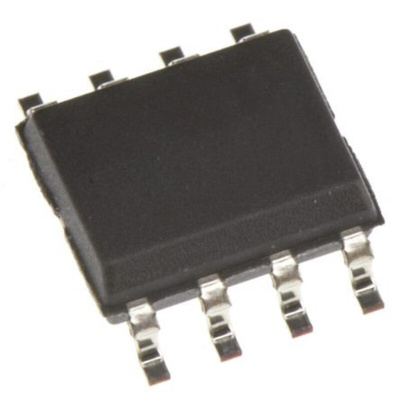

ON Semiconductor MC100EL31DG D Type Flip Flop IC, 8-Pin SOIC

The MC10EL/100EL31 is a D flip-flop with set and reset. The device is functionally equivalent to the E131 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E131 the EL31 is ideally suited for those applications which require the ultimate in AC performance. Both set and reset inputs are asynchronous, level triggered signals. Data enters the master portion of the flip-flop when clock is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the clock. The 100 Series contains temperature compensation.

475ps Propagation Delay
2.8GHz Toggle Frequency
ESD Protection: > 1 KV HBM, > 100 V MM
PECL Mode Operating Range: VCC= 4.2 V to 5.7 V with VEE= 0 V
NECL Mode Operating Range: VCC= 0 V with VEE= -4.2 V to -5.7 V
Internal Input Pulldown Resistors on D, CLK, S, and R
Moisture Sensitivity Level 1
Metastability 125 ps (see Application Note AN1504)
Transistor Count = 79 devices

Datasheet MC100EL31DG
