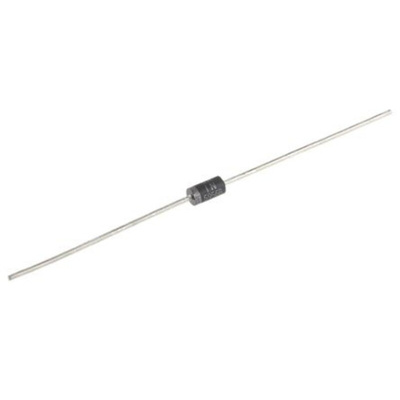

1N5934BG, onsemi, 24V Zener Diode ±5% 3 W Through Hole 2-Pin CASE 59-10, Стабилитрон

This is a complete series of 3.0 Watt Zener Diode Voltage Regulators with tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this is in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions.

Zener Voltage Range - 3.3 V to 200 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
Surge Rating of 98 Watts @ 1 ms
Maximum Limits Guaranteed On Up To Six Electrical Parameters
Package No Larger Than the Conventional 1 Watt Package
Mechanical Characteristics:
CASE: Void free, transfer-molded, thermosetting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES:230°C, 1/16, from the case for 10 seconds
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any
Pb-Free Packages are Available
End Products
Power Supply

Datasheet 1N5934BG
