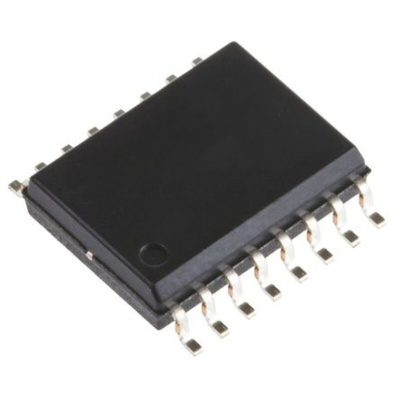

ON Semiconductor MC74HCT595ADR2G 8-stage Surface Mount Shift Register HCT, 16-Pin SOIC

The MC74HCT595A consists of an 8 bit shift register and an 8 bit D-type latch with three state parallel outputs. The shift register accepts serial data and provides a serial output. The shift register also provides parallel data to the 8 bit latch. The shift register and latch have independent clock inputs. This device also has an asynchronous reset for the shift register. The HCT595A directly interfaces with the SPI serial data port on CMOS MPUs and MCUs. The device inputs are compatible with standard CMOS or LSTTL outputs.

Output Drive Capability: 15 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 4.5 to 5.5 V
Low Input Current: 1.0 uA
High Noise Immunity Characteristic of CMOS Devices

Chip Complexity: 328 FETs or 82 Equivalent Gates

Datasheet MC74HCT595ADR2G
