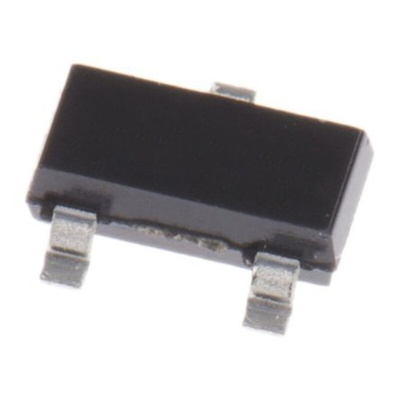

onsemi MMBZ16VALT1G, Dual-Element Uni-Directional ESD Protection Diode, 40W, 3-Pin SOT-23, Диод

SOT-23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
Working Peak Reverse Voltage Range - 13V
Standard Zener Breakdown Voltage Range - 15.2 - 16.8 V
Peak Power - 40 Watts @ 1.0 ms (Unidirectional)
ESD Rating of Class N (exceeding 16 kV) per the Human Body Model
Low Leakage < 5.0 μ A
CASE: Void-free, transfer-molded, thermosetting plastic case
FINISH: Corrosion resistant finish, easily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260 degrees C for 10 Seconds
Maximum Clamping Voltage @ Peak Pulse Current
Package designed for optimal automated board assembly
Small package size for high density applications
Available in 8 mm Tape and Reel
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

Datasheet MMBZ16VALT1G
