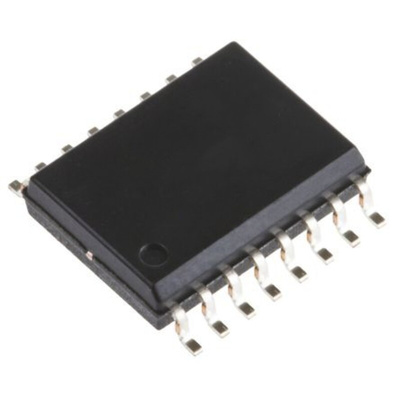

onsemi MC14014BDG 8-stage Surface Mount Shift Register, 16-Pin SOIC

4000 Series Counters & Shift Registers, ON Semiconductor

The MC14014B and MC14021B 8-bit static shift registers are constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. These shift registers find primary use in parallel-to-serial data conversion, synchronous and asynchronous parallel input, serial output data queueing, and other general purpose register applications requiring low power and/or high noise immunity.

Synchronous Parallel Input/Serial Output (MC14014B)
Asynchronous Parallel Input/Serial Output (MC14021B)
Synchronous Serial Input/Serial Output
Full Static Operation
"Q" Outputs from Sixth, Seventh, and Eighth Stages
Double Diode Input Protection
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
MC14014B Pin-for-Pin Replacement for CD4014B
MC14021B Pin-for-Pin Replacement for CD4021B

4000 CMOS Logic Family, ON Semiconductor

CMOS Family devices
Wide operating voltage range: 3 to 18V

Datasheet MC14014BDG
