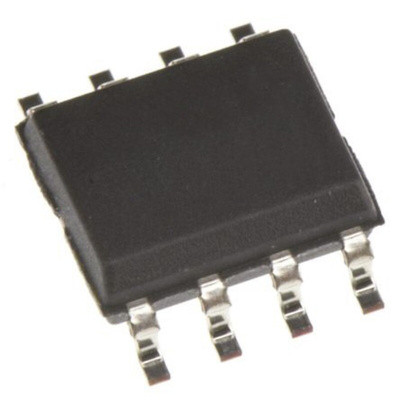

onsemi NCP5106BDR2G, MOSFET 2, 500 mA, 20V 8-Pin, SOIC

MOSFET & IGBT Drivers, ON Semiconductor

Power drivers for MOSFET and IGBT in low side, high side, and half-bridge circuits.

High Voltage Range: Up to 600 V
dV/dt Immunity ± 50 V/nsec
Gate Drive Supply Range from 10 V to 20 V
High and Low Drive Outputs
Output Source / Sink Current Capability 250 mA / 500 mA
3.3 V and 5 V Input Logic Compatible
Up to Vcc Swing on Input Pins
Matched Propagation Delays Between Both Channels
Outputs in Phase with the Inputs
Independent Logic Inputs to Accommodate All Topologies (Version A)
Cross Conduction Protection with 100 ns Internal Fixed Dead Time (Version B )
Under Vcc LockOut (UVLO) for Both Channels
Pin-to-Pin Compatible with Industry Standards
Applications
Half-Bridge Power Converters
Any Complementary Drive Converters (Asymmetrical Half-Bridge, Active Clamp) (A version only).
Full-Bridge Converters

MOSFET & IGBT Drivers, ON Semiconductor

Datasheet NCP5106BDR2G
