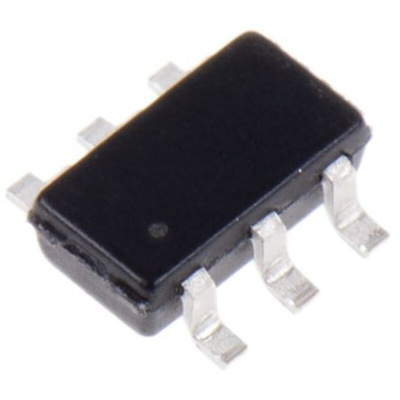

ON Semiconductor STF202-22T1G, SCSI Bus Terminator, 6-Pin TSOP, Терминатор шины

1869924
Номер производителя: STF202-22T1GПроизводитель: ON Semiconductor
Цена за шт. (норма упаковки 25 шт)
150.00 руб. (С НДС) *
Количество 25+ 125+ 250+
Цена 150.00 руб. 108.00 руб. 108.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TVS & EMI Filter Devices

Composite integrated solutions incorporating EMI filtering, ESD protection and Line Termination in a single SMT device.

This device is designed for applications requiring Line Termination, EMI Filtering and ESD Protection. It is intended for use in upstream USB ports, Cellular phones, Wireless equipment and computer applications. This device offers an integrated solution in a small package (TSOP-6, Case 318G) reducing PCB space and cost.

Provides USB Line Termination, Filtering and ESD Protection
Single IC Offers Cost Savings by Replacing 3 Resistors, 2 Capacitors, and 5 TVs diodes
Bi-directional EMI Filtering Prevents Noise from Entering/Leaving the System
IEC61000-4-2 ESD Protection for USB Port
Flexible Pull-down or Pull-up Line Termination to Meet USB 1.1 Low Speed and High Speed Specification
ESD Ratings: Machine Model = C Human Body Model = 3B
Benefits:
TSOP-6 Package Minimizes PCB Space
Integrated Circuit Increases System Reliability versus Discrete Component Implementation
TVs Devices Provide ESD Protection That is Better than a Discrete Implementation because the Small IC minimizes Parasitic Inductances
Applications
USB Hubs
Computer Peripherals Using USB

Signal/Line/Noise and Feedthrough – PCB Mount (SMT)

Unless explicitly stated, the filters in this range have an Operating Temperature Range of between -25°C and 85°C.

Техническая спецификация
pdfDatasheet STF202-22T1G
Высота:
1мм
Длина:
3.1мм
Количество контактов:
6
Максимальный ток питания:
5 мкА
Напряжение питания - максимальное:
5.25 В
Рабочая температура - максимальная:
+125 °C
Рабочая температура - минимальная:
-55 °C
Размеры:
3.1 x 1.7 x 1мм
Тип выводов:
USB Line Termination
Тип монтажа:
Поверхностное крепление
Тип упаковки:
TSOP
Типичное сопротивление:
1.5 (Pull-Up) kΩ, 22 (Series) kΩ
Ширина:
1.7мм
