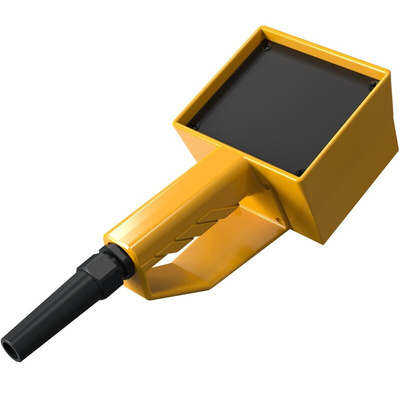

292110000, Rose Pilot Series Yellow Polyamide Handheld Enclosure, Display Window, IP65, 85 x 85 x 191mm, Корпус

Pilot 110-150 (2921) Series Hand Held Enclosures.

The Rose Pilot 2921 series of hand-held enclosures are ideal for automation, mechanical and control engineering. The mobile enclosures provide you with a large enclosed area for installing components including membrane keypads and switches. A comfortable ergonomic design and the various sizes of enclosure, within the series, ensures you can tailor the enclosure membrane front panel to suit your installation requirements.

Features and Benefits.

•Pilot 110 to 150 (2921) handheld enclosure.
•Large enclosure area.
•Area for installation of membrane keypads and switches.
•Ergonomic.
•Body material Polyamide.
•Front plate material Polystyrol.
•Colour – Yellow (RAL 1003).
•IP 65 (EN 60529).
•Flammability resistant UL 94 HB.
•Temperature range -40°C to +60°C.

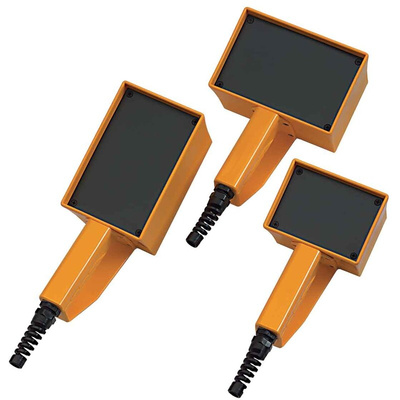

•Various sizes available.

Hand Held Enclosure Models Available.

•Stock number 1869951, Pilot 110.
•Stock number 1869973, Pilot 120.
•Stock number 1869989, Pilot 130.
•Stock number 1869995, Pilot 140.
•Stock number 1870002, Pilot 150.

Enclosure Typical Applications.

•Automation.
•Mechanical.
•Control.

(IP) Ingress Protection and what it means.

The first number is the protection from solids.
The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

IP 65 protection from total dust ingress and waterproof (projected from any direction by 6.3 mm nozzle).

What is Supplied?

•Enclosure with a handle.
•M20 x 1.5 Cable gland.
•Front plate.
•Panel screws for the enclosure and front.
•Wall holder.

Standards

IP65 EN 60529, EN 60079-0, UL 94 HB.

Supplied with

ROSE Handheld Enclosure, Keypad Recess, 0.39kg Weight - 2921 Series - 29211000

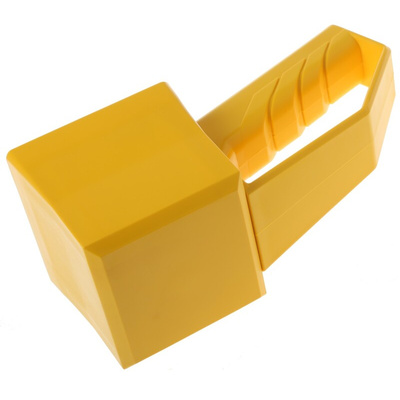

Choose this handheld enclosure from ROSE to house your switches and keypads. This unit has large dimensions of 85 (height) x 85 (width) x 191mm (depth), so it's compatible with a wide range of devices. Thanks to its bright yellow colour, this component is easy to spot in a crowded work environment. It also has an ergonomic handle that makes it comfortable to hold for long periods of time.

Features & Benefits

• Polyamide housing material is resistant to wear and impact for durability
• IP65 rating means it's dust-tight and resistant to low-pressure water jets
• Broad operating temperature range between -40°C and +60°C for use in harsh environments

Applications

• Automotive industry
• Mechanical operations
• Assembly lines

What accessories are supplied with this unit?

This handheld enclosure is supplied with a front plate, a cable gland, a wall holder and panel screws. This means you'll have everything you need for quick and simple assembly.

How heavy is this handheld enclosure?

This handheld enclosure has a light weight of just 0.39kg, so it's easy to handle.

M29211000

Data Sheet 29211000
