0211220000, Rose Mini-Polyglas Series Glass Fibre Reinforced Polyester Wall Box, IP66, 120 mm x 200 mm x 100mm, Настенный шкаф

1870018
Номер производителя: 0211220000Производитель: Rose
Цена за шт.
22487.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

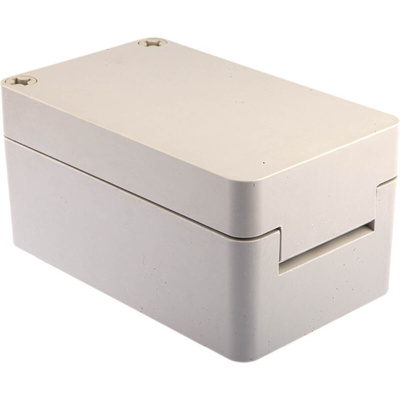

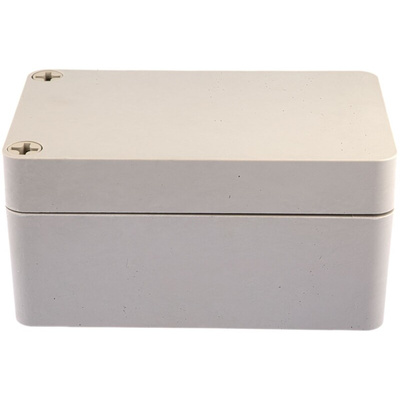

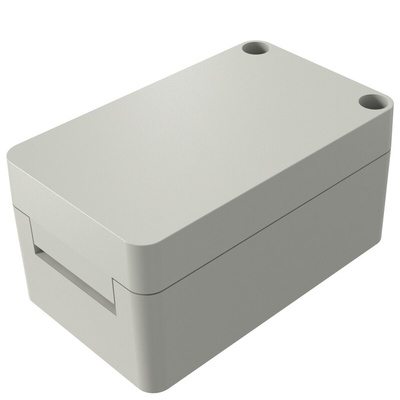

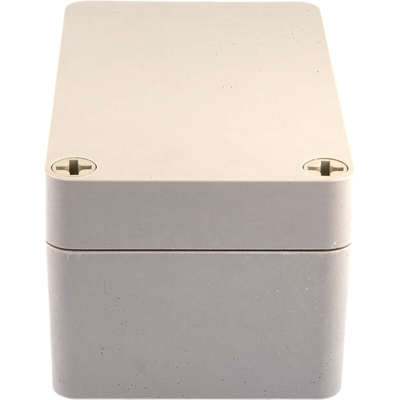

Rose Mini Polyglas IP66 Wall Box Enclosure without Window.

Rose Mini-Polyglas wall box enclosures are specially designed to protect equipment from aggressive fluid intrusion plus protect from the environment. This smaller enclosure works well both indoors and outdoors plus is complete with a hinged door/lid and models are available with or without a transparent window. The hinge on the door/lid is an external hinge and hidden. This IP66 wall enclosure is certified to E66473, self-extinguishing UL 94 V-0, halogen free, fully insulated VDE 0100 and has a surface resistance to IEC 60093.

Features and Benefits.

•\tMini-Polyglas wall box enclosure
•\tHinged door / lid, with hidden hinge.
•\tOpening angle 120°.
•\tMade from glass fibre reinforced thermoset polyester.
•\tIP 66 to EN 60529.
•\tDisruptive strength to IEC 60243-1.
•\tFully insulated to VDE 0100.
•\tFlame resistant to UL 94 V-0.
•\tSurface resistance to IEC 60093.
•\tHalogen free.
•\tTemperature range, -40°C to +100°C (without a window).
•\tTemperature range, -40°C to +80°C (with a window).
•\tIndoor and outdoor use.
•\tColour is grey (RAL 7038).

Models Available.

•\tStock number 1870018, part number 21.12 20 00, type MIP 1, 120 x 200 x 100 mm.
•\tStock number 1870024, part number 21.16 26 00, type MIP 2, 160 x 260 x 100 mm.
•\tStock number 1870030, part number 21.16 34 00, type MIP 3, 160 x 340 xx 100 mm.
•\tStock number 1870046, part number 21.20 15 00, type MIP 4, 200 x 150 x 100 mm.
•\tStock number 1870052, part number 21.20 20 00, type MIP 5, 200 x 200 x 170 mm.
•\tStock number 1870074, part number 21.20 30 00, type MIP 6, 200 x 300 x 170 mm.

Suitable Accessories.

•\tStock number 1870096, mounting plate for MIP 2.
•\tStock number 1870119, mounting plate for MIP 4.
•\tStock number 507595, mounting plate for MIP 5.
•\tStock number 1870131, mounting plate for MIP 5.
•\tStock number 1870147, mounting plate for MIP 6.
•\tStock number 2549226, external mounting bracket, 4 pieces.
•\tStock number 2549210, Phillips head locking screws.

Typical Applications.

MCR Technology.

(IP) Ingress Protection and what it means.

The first number is the protection from solids.
The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

Yes, IP66 provides total dust protection and is also waterproof from high pressure water.

What is Supplied?

•\tEnclosure base and door/lid.
•\tPress-in inserts within the base.
•\tInserts assist with mounting internally and externally.
•\tDoor locks are not supplied as standard.

Certificate No.

E66473.

Standards

IP 66 EN 60529, IEC 60243-1, VDE 0100, UL 94 V-O, IEC 60093.

ROSE Wall Box, 120mm Height, 200mm Width - Mini-Polyglas Series - 211220000

Protect electrical equipment and instrumentation devices with this wall box from ROSE. It's built from glass fibre-reinforced thermoset polyester for durability and resistance to heat. As it's halogen-free, it won't give off toxic fumes in the event of a fire. The IP65 rating means it's dust-tight and resistant to low-pressure water jets, so it's suitable for use in harsh indoor and outdoor environments. Its light weight of 0.9kg means it won't place too much strain on the mounting surface.

Features & Benefits

• Wide operating temperature range between -40°C and +100°C for use in harsh conditions
• Wide opening angle of 120° for ease of access to equipment
• Fully insulated for protection against electric shock
• Conforms to UL 508A safety standards for industrial control panels

Applications

• Measurement and control
• Instrumentation devices
• Electrical engineering
• Power distribution

What are the dimensions of this wall box?

This wall box has compact dimensions of 120 (height) x 200 (width) x 100mm (depth), making it a good choice for storing small components.

How do I mount components inside the wall box?

This wall box has press-in inserts for simple internal mounting.

Техническая спецификация
pdfData Sheet 21122000
pdfTechnical Drawing 21122000
RAL код:
RAL 7038
Внутренний тип монтажа:
Mounting Bosses
Встречающиеся стандарты:
IEC 60243-1
Высота - внешняя:
120 мм
Глубина - внешняя:
100мм
Для защиты:
Distribution panels, Extensions of electronics for measuring and weather stations, Operating control and monitoring system extensions
Комплект крепления:
Нет
Корпус - материал:
Glass Fibre Reinforced Polyester
Нижняя панель:
Нет
Применение:
Общего назначения
Прозрачная дверка:
Нет
Рейтинг IK:
IK08
Серия:
Mini-Polyglas
Специальные функции:
Hidden External Hinge, Polycase version with integrated handle, Standard version or with window
Степень защиты IP:
IP66
Тип замка двери:
Door Lock Not Supplied
Тип наружного монтажа:
Настенный
Цвет:
Серый
Шасси пластины:
Нет
Ширина - внешняя:
200 мм
