0212030000, Rose Mini-Polyglas Series Glass Fibre Reinforced Polyester Wall Box, IP66, 200 mm x 300 mm x 170mm, Настенный шкаф

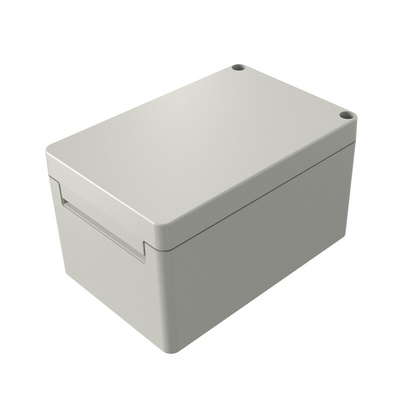

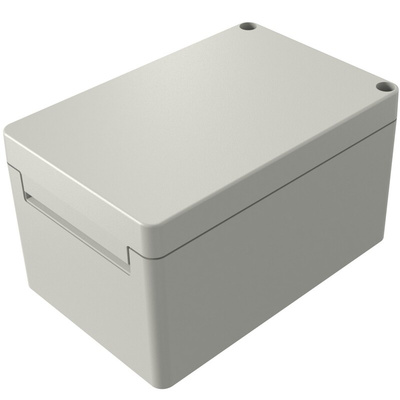

Rose Mini Polyglas IP66 Wall Box Enclosure without Window.

Rose Mini-Polyglas wall box enclosures are specially designed to protect equipment from aggressive fluid intrusion plus protect from the environment. This smaller enclosure works well both indoors and outdoors plus is complete with a hinged door/lid and models are available with or without a transparent window. The hinge on the door/lid is an external hinge and hidden. This IP66 wall enclosure is certified to E66473, self-extinguishing UL 94 V-0, halogen free, fully insulated VDE 0100 and has a surface resistance to IEC 60093.

Features and Benefits.

•\tMini-Polyglas wall box enclosure

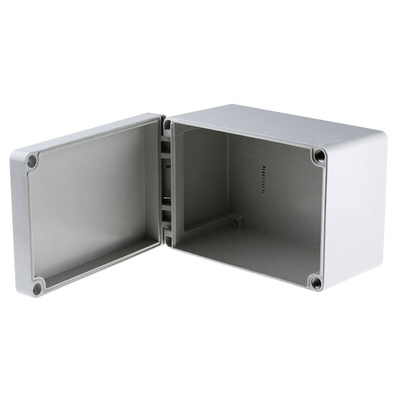

•\tHinged door / lid, with hidden hinge.
•\tOpening angle 120°.
•\tMade from glass fibre reinforced thermoset polyester.
•\tIP 66 to EN 60529.
•\tDisruptive strength to IEC 60243-1.
•\tFully insulated to VDE 0100.
•\tFlame resistant to UL 94 V-0.
•\tSurface resistance to IEC 60093.
•\tHalogen free.
•\tTemperature range, -40°C to +100°C (without a window).
•\tTemperature range, -40°C to +80°C (with a window).
•\tIndoor and outdoor use.
•\tColour is grey (RAL 7038).

Models Available.

•\tStock number 1870018, part number 21.12 20 00, type MIP 1, 120 x 200 x 100 mm.
•\tStock number 1870024, part number 21.16 26 00, type MIP 2, 160 x 260 x 100 mm.
•\tStock number 1870030, part number 21.16 34 00, type MIP 3, 160 x 340 xx 100 mm.
•\tStock number 1870046, part number 21.20 15 00, type MIP 4, 200 x 150 x 100 mm.
•\tStock number 1870052, part number 21.20 20 00, type MIP 5, 200 x 200 x 170 mm.
•\tStock number 1870074, part number 21.20 30 00, type MIP 6, 200 x 300 x 170 mm.

Suitable Accessories.

•\tStock number 1870096, mounting plate for MIP 2.
•\tStock number 1870119, mounting plate for MIP 4.
•\tStock number 507595, mounting plate for MIP 5.
•\tStock number 1870131, mounting plate for MIP 5.
•\tStock number 1870147, mounting plate for MIP 6.
•\tStock number 2549226, external mounting bracket, 4 pieces.
•\tStock number 2549210, Phillips head locking screws.

Typical Applications.

MCR Technology.

(IP) Ingress Protection and what it means.

The first number is the protection from solids.
The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

Yes, IP66 provides total dust protection and is also waterproof from high pressure water.

What is Supplied?

•\tEnclosure base and door/lid.
•\tPress-in inserts within the base.
•\tInserts assist with mounting internally and externally.
•\tDoor locks are not supplied as standard.

Certificate No.

E66473.

Standards

IP 66 EN 60529, IEC 60243-1, VDE 0100, UL 94 V-O, IEC 60093.

ROSE Wall Box, 300mm Width, 170mm Depth - Mini-Polyglas Series - 212030000

Safeguard your equipment against environmental damage with this wall box from ROSE. The tough glass fibre-reinforced thermoset polyester construction resists impact and wear, making it suitable for use in harsh environments. A hinged door with an opening angle of 120° gives you easy access to the box's contents. An IP65 rating means the unit is dust-tight and resistant to low-pressure water jets, so you can use it in outdoor environments.

Features & Benefits

• Complies with UL 508A safety standards for industrial control panels
• Wide operating temperature range between -40°C and +100°C for use in harsh conditions
• Halogen-free material won't release toxic fumes when exposed to heat or fire
• Large dimensions of 200 (height) x 300 (width) x 170mm (depth) for storing multiple components

Applications

• Measurement and control technology
• Distribution panels
• Food and beverage processing industry

How can I mount this wall box?

You can securely mount this box on a wall using a compatible mounting plate (187-0147). The mounting plate is made of galvanised steel for resistance to corrosion, helping to ensure a secure hold.

Data Sheet 21203000

Technical Drawing 21203000
