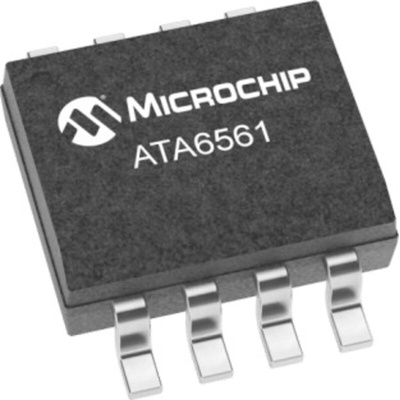

Microchip ATA6561-GAQW-N, CAN Transceiver 5Mbps, 8-Pin SOIC, Трансивер

The Microchip ATA6561 high-speed CAN FD ready CAN transceiver provides an interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed (up to 5Mbit/s) CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.

Communication speed up to 5Mbit/s
Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
Differential receiver with wide common mode range
Direct interfacing to microcontrollers with supply voltages from 3V to 5V
Remote wake-up capability via CAN bus
Functional behaviour predictable under all supply conditions
Transceiver disengages from the bus when not powered up
RXD recessive clamping detection
High electrostatic discharge (ESD) handling capability on the bus pins
Bus pins protected against transients in automotive environments
Transmit data (TXD) dominant time-out function
Undervoltage detection on VCC
CANH/CANL short-circuit and Overtemperature protected
8-Lead SOIC package

Datasheet ATA6561-GAQW-N
