7MH5113-4GD00, Siemens Load Cell -35°C +70°C

Siemens Siwarex Load Cells

The Siemens Siwarex range of load cells offer a wide selection of different designs suitable for nearly all applications in industrial weighing. The load cells cover a large range of nominal loads, with additional mounting units and accessories available to offer optimum alignment and protection to ensure accuracy. As a standard, most load cells have a C3 accuracy class.

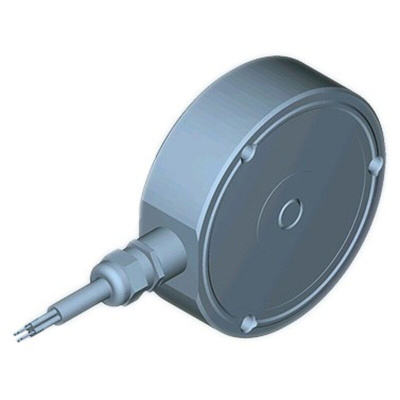

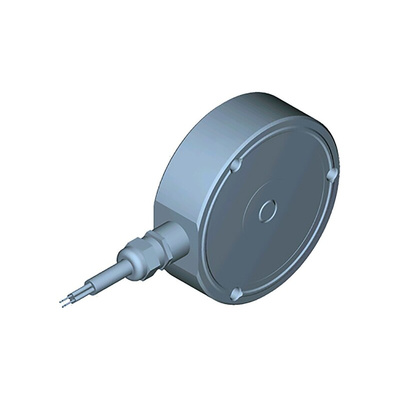

Ring Torsion Load Cell

Due to its low installation dimensions, the Siemens ring torsion load cell is suitable for a variety of uses, particularly for use in container, conveyor, platform and roller table scales. The load cell benefits from quick and simple installation with SIWAREX mounting devices.

Features and Benefits

• The measurement element of the load cell is a stainless steel spring with a protection rating of IP66 and IP68.
• The ring torsion load cell can be adapted to batching applications or legal-for trade scales due to its high resolution.
• All load cells are equipped with an integral overload protection if they feature a rating load of up to 13 t.
• Capable of calibration to OIML.

Siwarex WL 280 Load Cell RN-S SA 2t C3 - Rated Load 2t - Accuracy class C3 - 6 m Cable length, 4 Wires - Made of Stainless steel

Datasheet 7MH5113-4GD00
