7MH5106-3GD00, Siemens SIWAREX WL Series Load Cell, 200kg Range, Compression Measure

Siemens Siwarex Load Cells

The Siemens Siwarex range of load cells offer a wide selection of different designs suitable for nearly all applications in industrial weighing. The load cells cover a large range of nominal loads, with additional mounting units and accessories available to offer optimum alignment and protection to ensure accuracy. As a standard, most load cells have a C3 accuracy class.

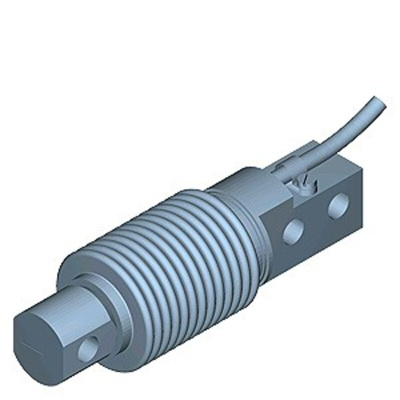

Bending Beam Load Cell

The Siemens Bending Beam load cell is suitable for a variety of uses, particularly for use in small scale container and platform scales. The load cell benefits from quick and simple installation with SIWAREX mounting devices.

Features and Benefits

• The measurement element of the load cell is a stainless steel double bending beam to which four strain gauges are applied, offering a protection rating of IP68.
• A maximum resolution of up to 15,000 divisions allowing for very precise scales.
• This range of bending beam load cells offer rated loads ranging from 10kg to 500kg.
• All load cells are equipped with an integral overload protection if they feature a rating load of up to 13 t.

Siwarex WL 230 Load Cell BB-S SA 200kg C3 - Rated Load 200kg - Accuracy class C3 - 3m Cable length, 4 Conductor - Material Stainless steel

Datasheet 7MH5106-3GD00
