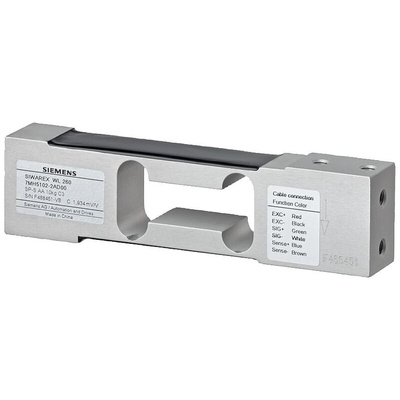

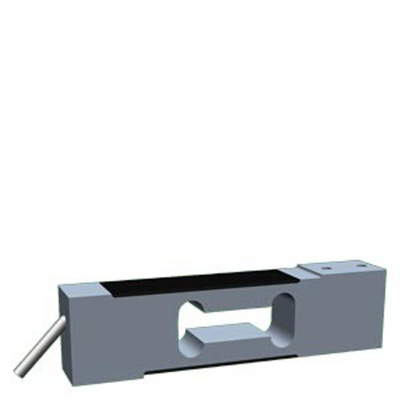

7MH5102-1PD00, Siemens SIWAREX WL Series Single Point Load Cell, 5kg Range, Compression Measure

Siemens Load Cell, C3 Accuracy Class, 500g Weight - SIWAREX WL Series - 7MH5102-1PD00

Want to ensure accuracy in your weighing equipment? Partner up with this Siemens load cell. When fitted in a belt scale or another electronic measuring device, it lets you read weights of up to 5kg with a high precision level of 0.023%. This hardy unit holds its own in tough environments, thanks to its broad operating temperature range between -35°C and +65°C. Its aluminium body is strong and durable to stand the test of time, even in heavy-duty applications. Load cells like this are important for boosting the accuracy of quality-control tasks in settings like manufacturing plants and complex production lines.

Features & Benefits

• Included cable lets you mount it up to 3m from an energy source for flexibility
• Aluminium body is corrosion-resistant for protection in high-moisture workspaces
• Mounting screws need 15 to 20Nm tightening torque, so it's easy to install by hand

What's the IP rating of this load cell?

This component is IP65-rated, which shows that it's dust-tight and resists water damage when exposed to low-pressure jets from any direction.

IP65

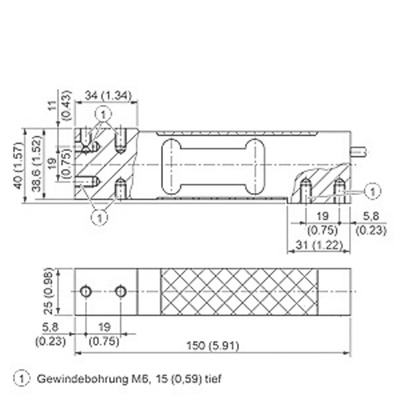

Datasheet 7MH5102-1PD00

Catalogue - Products for Weighing Technology

Manual - 7MH5102-1PD00
