7MH5102-2AD00, Siemens SIWAREX WL Series Single Point Load Cell, 10kg Range, Compression Measure

Siemens Siwarex Load Cells

The Siemens Siwarex range of load cells offer a wide selection of different designs suitable for nearly all applications in industrial weighing. The load cells cover a large range of nominal loads, with additional mounting units and accessories available to offer optimum alignment and protection to ensure accuracy. As a standard, most load cells have a C3 accuracy class.

Single Point Load Cells

The Siemens Single Point load cell is designed for use in platform scales featuring just one load cell and medium accuracy weighing machines. They can also be used in small beltscales. The load cell benefits from quick and simple installation with SIWAREX mounting devices.

Features and Benefits

• The aluminium load cell is hermetically sealed, offering an industrial protection rating of IP65.
• This range of load cells offer rated loads ranging from 3kg to 100kg.
• Maximum platform size of 400m x 400mm.
• Usage in legal for trade sales is possible.

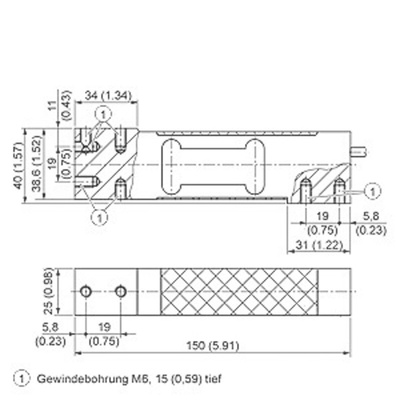

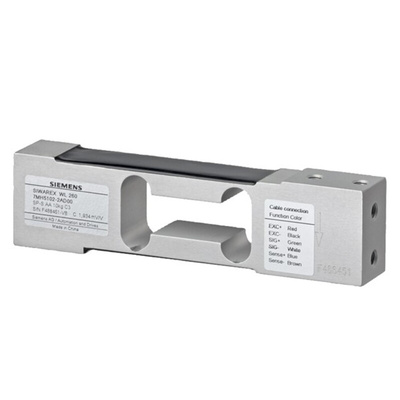

Siwarex WL 260 Load Cell SP-S AA 10kg C3 - Rated load 10 kg - Accuracy class C3 - 3 m Cable length, 6 Conductor - Material Aluminium

Datasheet 7MH5102-2AD00
