7MH5108-5KD00, Siemens SIWAREX WL Series Load Cell, Compression Measure

Siemens Siwarex Load Cells

The Siemens Siwarex range of load cells offer a wide selection of different designs suitable for nearly all applications in industrial weighing. The load cells cover a large range of nominal loads, with additional mounting units and accessories available to offer optimum alignment and protection to ensure accuracy. As a standard, most load cells have a C3 accuracy class.

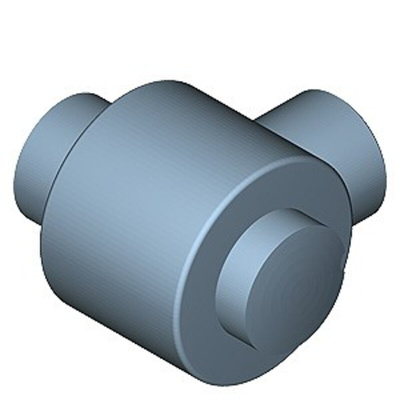

Compression Load Cell

The Siemens compression load cell is suitable for a variety of uses, particularly for use in small and medium sized containers or truck scales. The load cell benefits from quick and simple installation with SIWAREX mounting devices.

Features and Benefits

• Compact load cell.
• Suitable for implementation in container, hopper and vehicle scales.
• The measurement element of the load cell is a stainless steel solid cylinder to which four strain gauges are applied, offering a protection rating of IP68.
• This range of bending beam load cells offer rated loads ranging from 500kg to 500t.

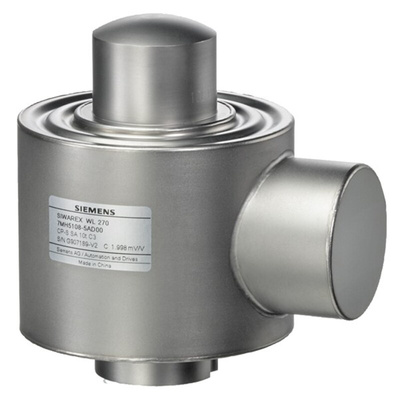

Siwarex WL 270 Load Cell CP-S SA 30t C3 - Rated Load 30t - Accuracy class C3 - 15m Cable length, 4 Conductor - Material Stainless steel

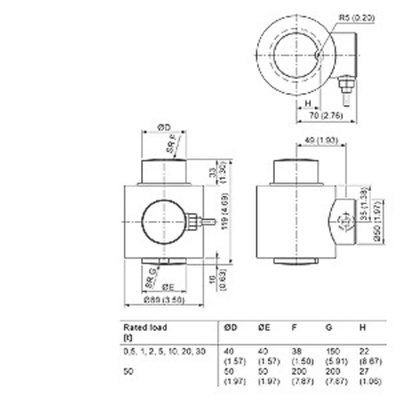

Datasheet 7MH5108-5KD00
