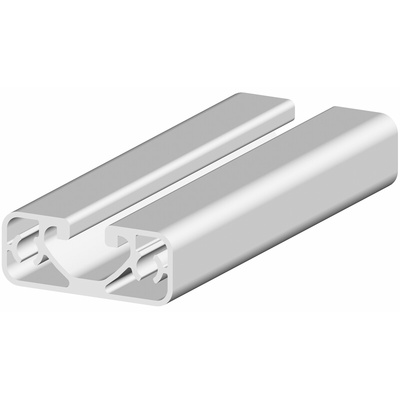

RS PRO Silver Aluminium Profile Strut, 40 x 16 mm, 8mm Groove, 3000mm Length

RS PRO Aluminium Strut Profiles

RS PRO structural systems offer a modular solution for general workplace furniture construction. Offering strong, light-weight, easily interchangeable components in a variety of profile types. The modular system offers alloy struts available in 1m, 2m and 3m lengths with profiles from 20mm to 80mm. These high quality strut profiles are compatible with a range of structural support and connector accessories, work benches, guarding and general enclosures, as well as many other workplace fixtures and are easy to construct and adapt to almost any application.

Features and benefits

• Light-weight aluminium alloy


• Suitable for cut to length applications


• Available in 1m (7613319), 2m (7613313) and 3m (7613322) (1873275) (1873276) (1873277) (1873278) (1873279) lengths


• Multiple profile sizes for a range of applications


• Compatible with support and connector accessories


• Groove size: 8mm


• Number of grooves: 4 & 2


• Structural element type: Strut profile

Application

Strut profiles are an excellent structural support system used in a wide range of environments including industrial and home. They are available in a variety of materials including aluminium and steel and feature a range of profiles to suit your needs.

FAQs

What sizes are available in this range?

This range includes the following Aluminium Alloy Struts:

• 7613319 - 40 x 40 mm, 8mm Groove, 1000mm Length, Series Profile 8


• 7613313 - 40 x 40 mm, 8mm Groove, 2000mm Length, Series Profile 8


• 7613322 - 40 x 40 mm, 8mm Groove, 3000mm Length, Series Profile 8


• 1873275 - 40 x 40 mm, 8mm Groove, 3000mm Length, Series Profile 8 - Black version


• 1873276 - 40 x 80 mm, 8mm Groove, 3000mm Length, Series Profile 8


• 1873277 - 40 x 120 mm, 8mm Groove, 3000mm Length, Series Profile 8


• 1873278 - 40 x 16 mm, 8mm Groove, 3000mm Length, Series Profile 8 - 1 Groove special


• 1873279 - 80 x 16 mm, 8mm Groove, 3000mm Length, Series Profile 8 - 2 Groove special


What are the types of connecting components?

RS Structural System Profile Accessories include Cube Connectors, T-slot Nuts, Ball Catches, Turn Locks, Self Tapping Screws, Earthing Terminals, Cover Caps, and many other items. Connecting components are usually made from steel, iron and aluminium for superior strength and a heavier torque. They are easy to use and can be taken apart if you need to disassemble your project later and include:

• T-nuts and T-bolts are used to fasten components to profiles


• Joint and angle brackets and corner cubes can be used to make a strong connection.

Note

Please note the groove size of the product before ordering any connector accessories such as T-slot nuts.
