5SV1316-7KK02, Siemens RCBO, 2A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, SENTRON Range, Автоматический выключатель

Siemens RCBO, 30mA Trip Sensitivity, Instantaneous Break Time - SENTRON Series - 5SV1316-7KK02

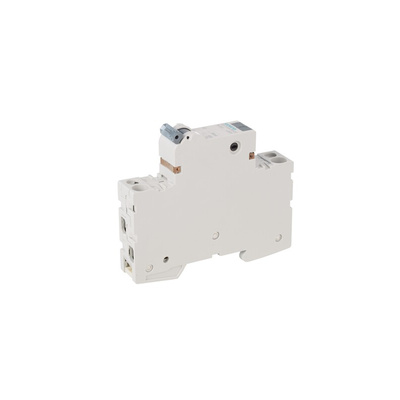

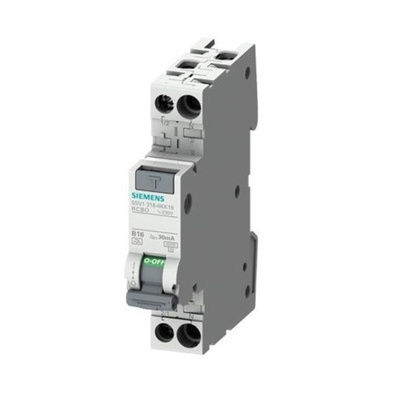

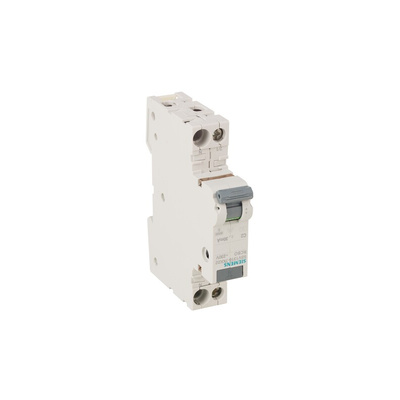

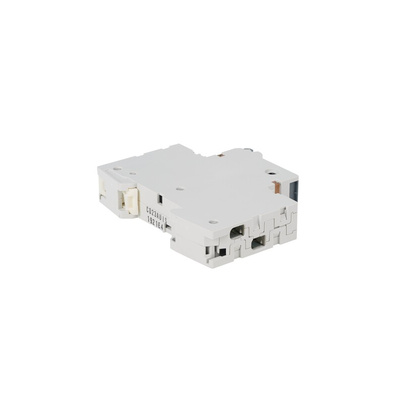

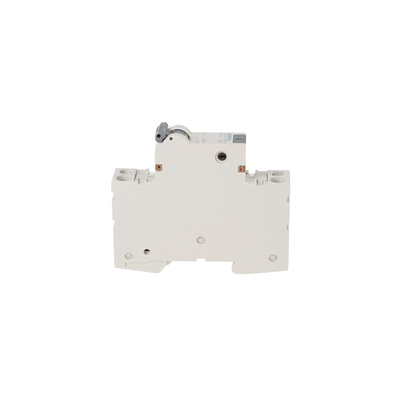

Protect people and equipment in industrial environments with this RCBO from Siemens. It stops earth faults, overload and short-circuit currents from causing damage to machinery and minimises the risk of electric shocks. The type-C device trips instantly, so it offers a high level of protection against electrical surges. A breaking capacity of 6kA allows it to safely handle high current spikes. Screw terminals hold your wires securely, even in vibrating conditions, so there's less need for frequent checks and maintenance. To maximise packing efficiency on your circuit board, this device has compact dimensions of 90 (H) x 18 (W) x 77mm (D).

• Halogen-free, so it emits no toxic fumes in the event of a fire
• IP20-rated enclosure when connected with conductors is protected against touch from fingers and objects larger than 12mm
• Wide operating temperature range of -25°C to +45°C makes it suitable to use in demanding operating conditions

What type of electrical wires is this RCBO compatible with?

This RCBO is compatible with both solid and stranded wires, with cross sections between 0.75 and 16mm².
