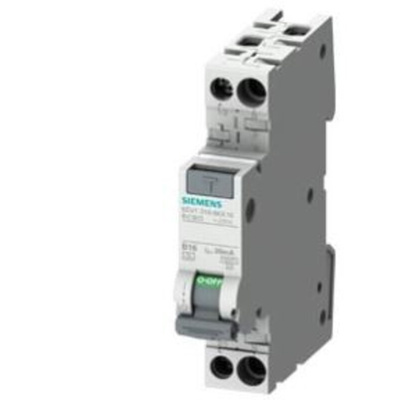

5SV1316-7KK06, Siemens RCBO, 6A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, SENTRON Range, Автоматический выключатель

Siemens RCBO, 195V AC Rated Voltage, DIN Rail Mount - SENTRON Series - 5SV1316-7KK06

Protect machinery and workers against earth leakages, overcurrent and short circuits with this RCBO from Siemens. It reacts instantly to faults by cutting the attached power circuit to minimise the risk of component damage and electric shocks. A low power loss of 0.6W means little energy is wasted, so you benefit from efficient automated processes. Screw terminals make the unit easy to wire using just a screwdriver, and they ensure conductors are firmly held in place, even in vibrating conditions. This RCBO is suitable for use in industrial applications such as automated manufacturing and robotics systems.

Features & Benefits

• IP20-rated housing (when correctly installed and wired) is protected against objects larger than 12mm, including fingers
• Mechanical lifespan of up to 10,000 cycles for long-term reliability
• Takes up minimal space in a distribution board, thanks to compact dimensions of 17.6 (L) x 18 (W) x 77mm (D)
• Easy to connect to a DIN rail for simple and fast installation

In what temperature range can I use this RCBO?

This circuit breaker has a broad operating temperature range of -25°C to +45°C, so it's compatible with demanding settings.
