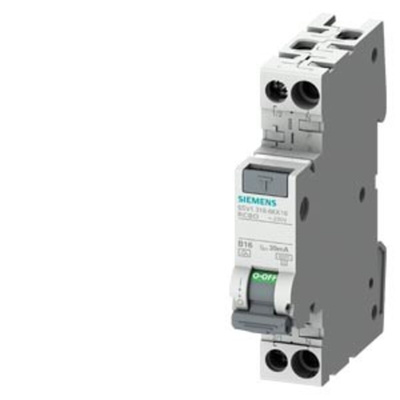

5SV1316-7KK16, Siemens RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, SENTRON Range, Автоматический выключатель

Siemens RCBO, 1.7W Power Loss, 50Hz Voltage Frequency - SENTRON Series - 5SV1316-7KK16

Safeguard your equipment from electrical faults with this RCBO from Siemens. It combines the functions of a mini circuit breaker and residual current device to offer you protection from both short circuits and earth faults. This makes it a versatile safety solution. Thanks to thermoplastic housing, the RCBO can withstand mechanical impact, so it's suitable for use in harsh environments. This material also serves as insulation to protect you from electric shocks. The device has type-C tripping characteristics, which means that it cuts power at 5 to 10 times its rated current, making it suitable for light industrial and commercial applications.

• Narrow width of 18mm for use in setups with limited space
• Instantaneous breaking time for immediate response to faults
• DIN rail mounting is simple and tool-free, so saves time and effort
• Breaking capacity of 6kA to handle sudden current surges without damage

Is this RCBO finger-safe?

Yes, this device has an IP20 rating. This means that it's protected from tools and objects larger than 12mm in size, including your fingers.
