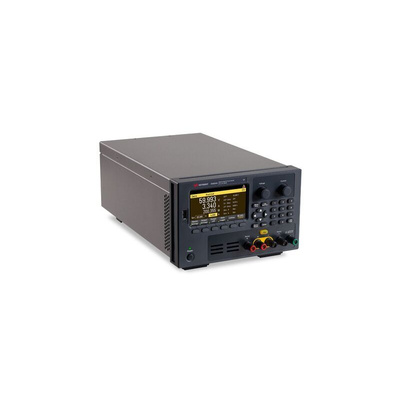

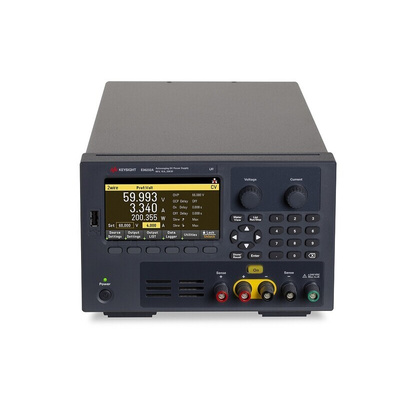

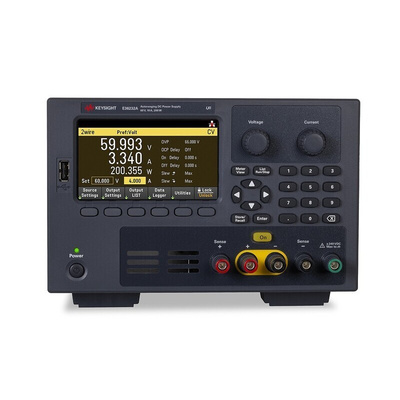

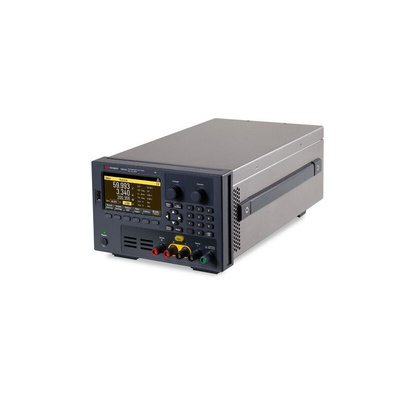

E36232A, Keysight Technologies E36200 Series Digital Bench Power Supply, 0 → 60V dc, 0 → 10A, 1-Output, 200W, Блок питания

The E36200 series consists of two 200 W single output power supplies and two 400 W dual output power supplies. Auto ranging technology provides the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) using auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring up to 200 W. A dual output supply provides two independent 200 W channels which can be combined into a single 400 W channel.

Auto ranging more current at all voltage settings
Auto-parallel for higher current up to 40 A
Auto-series for higher voltage up to 120 V
Variable slew rate to control inrush current
Low noise, DUT protection & precision measurements
350 μVrms noise
Overvoltage, overcurrent and over-temperature protection
Local 2–wire or remote 4-wire measurements
Low range current measurement
Fully programmable power supply

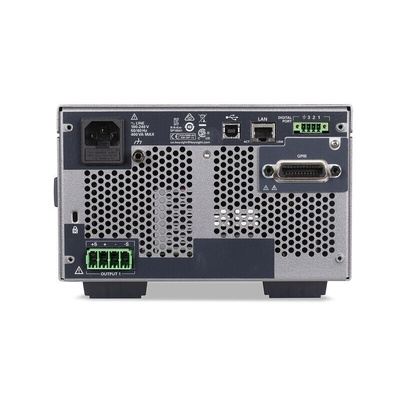

USB, LAN, digital I/O and optional GPIB
BenchVue PS application
E3633A/34A mode
Advanced features
Data logger
Output LIST
