090401 E01, Eaton Contact Block for Use with RMQ 16 Series, 5→250V, 1 NC

Eaton Switch Contact Block - RMQ16

Introducing the RMQ16 pilot device range of contact blocks by Eaton. This range of products consists of high quality, durable contact blocks and affiliated products that have been created and designed to be used for several different applications.

Features & Benefits

• Front fixing, front mounting of the contact block
• The block forms part of the RMQ16 Series
• Quick, simple and easy to install
• These contact blocks have an IP rating of IP65, this means that the block is protected against dust that may cause harm to equipment. This rating also means that the part os protected against water spray from all directions
• Durability, electrical AC-15 to IEC/EN 60947-5-1 at 230 V
• Ie = Rated operational current
• CE marking
• UL Listed, CSA certified

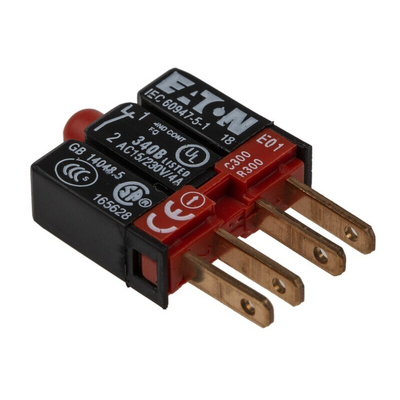

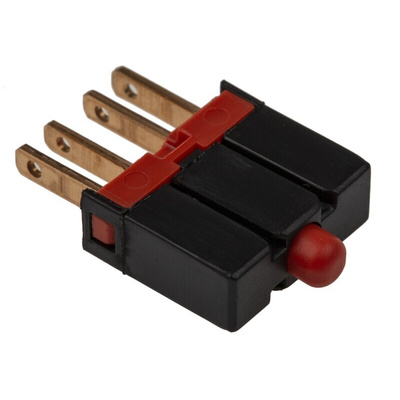

Eaton 1NC Contact Block for use with the RMQ 16 Range - E01

This front mount contact block features a screw connection with blade terminals and 1 Normally Closed contact.

• Rated Current 4A
• Voltage Rating 250 V ac
• 1NC Contact
• Front Mount
• Screw Terminal Connection
• Degree of Protection IP20

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.
