Rohde & Schwarz HMC8015 Power Quality Analyser

Rohde & Schwarz offer this large inclusion bundle of Power Quality Analyser, software upgrades and accessories.

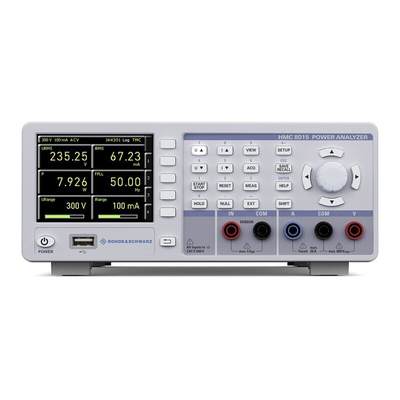

HMC8015 is the first compact tester for AC/DC load and standby current characterisation to enable measurements without extra requirements such as computers or remote infrastructure. It features a numerical and graphical display with 26 key parameters. A PASS/FAIL function allows users to monitor numerous measurands either on the display panel or externally via an output on the rear panel. Simultaneously displaying up to 10 configurable measurands this bench analyser also has a refresh rate of 10 measurements per second. A hardware based integrator delivers a precise, seamless power consumption analysis adding up ampere hours and function according to polarity. Tailored specifically for use in labs and system racks this package is the ideal solution for all your bench testing needs.

Included in this bundle:

HMC8015 \tPower Quality Analyzer
HOC151 \tAdvanced Analysis
HOC152 \tAdvanced I/O
HOC153 \tCompliance Test

Features and Benefits:

• Clear display of all measured parameters
• Measurement accuracy
• Everyday measurement functions
• Power measurement range 50 μW to 12 kW
• Analog bandwidth DC to 100 kHz
• Sample rate 500 ks/s
• 16-bit resolution for voltage and current
• Basic accuracy 0.05%
• 26 different measurement and mathematical functions

Standards

CAN/CSA-C22.2 NO. 61010-1, UL 61010-1, DIN EN 61010-1, DIN EN 61326-1, DIN EN 55011
