FPC-COM1, Rohde & Schwarz FPC1000 Desktop Spectrum Analyser, 5 kHz → 3 GHz, Анализатор спектра

Rohde & Schwarz FPC1000 Series Spectrum Analyser Bundle

Rohde & Schwarz offer this large inclusion bundle of Spectrum Analyser, software upgrades and accessories.

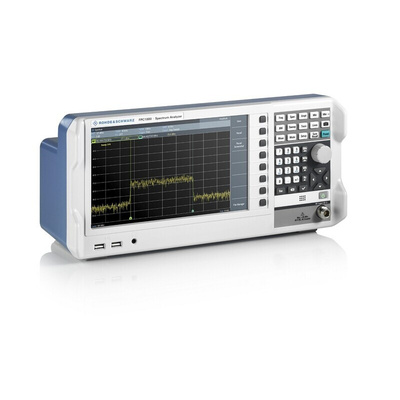

The FPC1000 Series from Rohde and Schwarz is a 5 kHz to 1 GHz spectrum analyser. The FPC1000 spectrum analyser delivers unexpected performance. Extraordinarily low noise floor and high maximum input power combine to provide best dynamic range. Resolution bandwidth settings to 1 Hz resolve finer spectral details. The FPC1000 series features 10.1", WXGA (1366 x 768 pixels) resolution with 26% larger display and has a 160% higher resolution than other instruments. It can be controlled via Smart Wireless remote control software. This spectrum analyser is used in education, production, service or basic research. Supports wired Ethernet and wireless WiFi connectivity. R&S InstrumentView for Windows and the iOS/Android app-based R&S MobileView platforms enables remote control and measurement anytime, anywhere. This bundle includes frequency upgrades and several software packages, providing you with more functions and options, the ideal addition to any troubleshooting or analysing kit.

Included in this bundle:

FPC1000\t(144-8210) \tSpectrum Analyzer, 5kHz to 1GHz
FPC-B2 \t(144-8213) \tFreq. Upgrade 1GHz to 2GHz
FPC-B3 \t(144-8214) \tFreq. Upgrade 2GHz to 3GHz
FPC-B22 \t(144-8215) \tPreamplifier software
FPC-K7 \t(144-8216) \tModulation analysis software
FPC-K43 \t(144-8217) \tReceiver mode software
FPC-K55 \t(144-8218) \tAdvanced measurements software

Features and Benefits:

• 100% software upgradeable via key-code
• Provides low noise floor of -150 dBm add optional FPC1000-B22 preamplifier to increase sensitivity
• FPC1000 can measure high-power signals of up to +30 dBm (1 W)
• 6 markers shown vividly in different colours

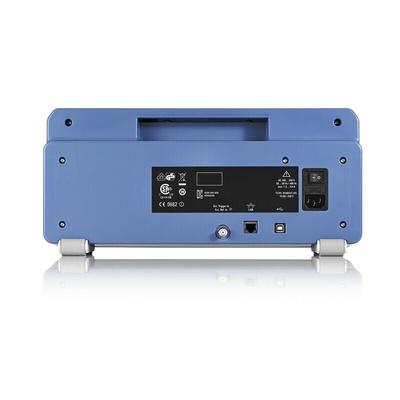

• Two USB2.0 ports for storage media and connecting accessories, headphone jack, audio speaker, RF input
• Soft menu selection for quick access to key tools, measurement setup buttons
• Power key approximately 15 seconds boot time
• Documentation as a screenshot or of instrument settings, control knob
• Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis, R&S FPC-K55 advanced measurement
• Optional accessories ZZA-FPC1 19" rackmount kit, HZ-15 Near field probes, 30 MHz to 3 GHz, HZ-16 Amplifier, 100 kHz to 3 GHz TB-Z3 soft carrying case
• Dimension is 396 x 185 x 156 mm, weight is 3Kg
• WiFi enabled, supported by included remote control and measurement software
• Three-year standard warranty
• FPC1000 Series
