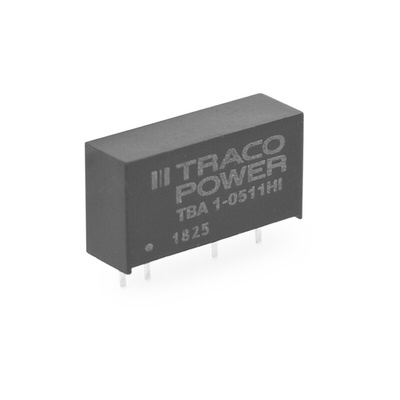

TBA 1-0522HI, TRACOPOWER TBA 1HI DC-DC Converter, ±12V dc/ ±41mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max, Преобразователь

The TBA 1HI is an elementary 1 Watt DC/DC SIP converter series which is specifically designed to offer a low-cost solution with no concession on quality and lifetime. The new design improves on the industry standard features and offers an integrated continuous short circuit protection circuit, an operating temperature range from –40°C to 85°C without derating and I/O-isolations of either 3’000 VDC. It offers a broad application range in any space and cost critical application.

Continuous short circuit protection
I/O isolation: 3’000 VDC
Operating temperature range -40 to +85 °C without derating
Input voltage ranges (±10%): 5, 12, 24 VDC
High efficiency up to 82%
SIP-7 package
Unregulated outputs
3-year product warranty

Datasheet TBA 1-0522HI
