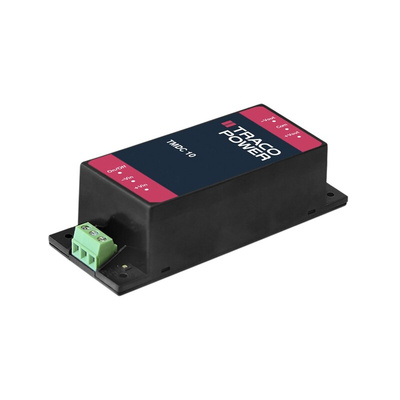

TMDC 10-4822, TRACOPOWER TMDC 10 DC-DC Converter, ±12V dc/ ±416mA Output, 18 → 75 V dc Input, 10W, Chassis Mount, +80°C Max, Преобразователь

Traco Power DC-DC Converter, Encapsulated Package Type, 86% Efficiency - TMDC 10 Series - TMDC 10-4822

When you need a compact and efficient DC-DC converter, opt for this high-performance package from Traco Power. A wide input range between 18 and 75V DC ensures it's compatible with common power sources. Compact dimensions of 79 (L) x 34 (W) x 22mm (D) mean you'll have no trouble fitting it in tight spaces. Mounting holes give you the option to fix it on a wall or panel, too. The converter's dual outputs enable you to power two circuits simultaneously and, with an 86% efficiency, it won't waste precious energy changing DC levels. A fully encapsulated chassis delivers the protection needed to withstand demanding environments.

• Functional isolation separates the input and output, so it works dependably
• Overload, under-voltage and short-circuit protections prevent electrical damage
• LED makes it a doddle to check whether it's hooked up correctly
• Built-in filters reduce noise, ensuring it doesn't interfere with systems

Applications

• Process monitoring
• Robotics systems
• Safety devices
• Industrial computing

The TMDC 10 series (10 Watt) is the latest additions to Traco Power’s existing TMDC line of Industrial DC/DC off-board modules. Equipped with integrated filters which limit conducted and radiated emissions but also increase the modules EMC immunity, this series is suitable for many harsh industrial applications which require increased EMC and isolation (3000 VDC I/O-isolation) capabilities. The modules come in fully encapsulated 3.11” x 1.34” x 0.87” plastic package and feature a temperature range from –40° to 80°C without derating. All models have an ultra wide 4:1 input voltage range from either 9-36 VDC or 18-75 VDC and fully regulated outputs. DC-OK and remote on/off functions complete the package to provide an ideal solution for many harsh industrial applications.

Does this DC-DC converter handle high and low temperatures?

Fully encapsulated chassis mount modules
Harsh industrial EMC capabilities: Integrated filters for emission & immunity
Ultra wide 4:1 input voltage range: 9-36 and 18-75 VDC
Operating temperature range -40 to +80 °C without derating
I/O-isolation 3’000 VDC
Protection against overload, undervoltage and short circuit
DC-OK (LED) and Remote On/Off function

3-year product warranty

Yes. This DC-DC converter gets to work at temperatures between -40°C and +80°C, without any loss of performance.
