170-12500 HEGP25-PET-BK (50), HellermannTyton Expandable Braided PET Black Cable Sleeve, 25mm Diameter, 5m Length, Helagaine HEGP06 Series, Кабельная муфта

HellermannTyton Cable Sleeve

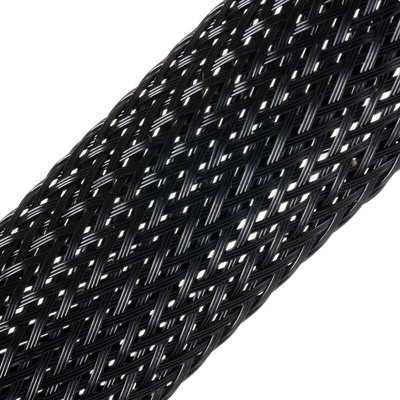

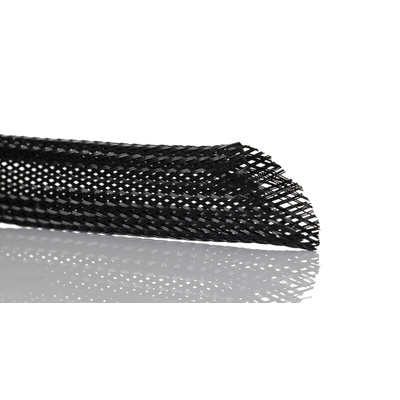

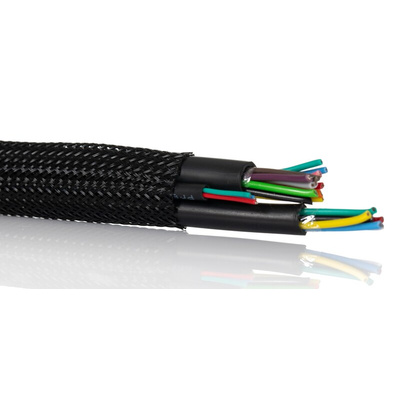

The HellermannTyton black cable sleeve is an expandable and braided protective cover with sleeve diameter of 25mm and length of 5m. It is made of sturdy polyethylene terephthalate (PET) material. This monofilament sleeving is used for bundling and protecting leads and cable. Its special woven structure allows it to be slipped on easily. The sleeve should be cut with a hot cutting tool, or the ends fused with a soldering iron or similar.

Features and Benefits

High abrasion resistance
Highly flexible
Maximum cable diameter is 34mm
Minimum cable diameter is 18mm
Operating temperature ranging between -50°C and 150°C
Melting point is 250°C
Reel length of 50m
Very high surface coverage

Applications

Automotive industry
Machine construction
Smaller electrical appliances to avoid pockets of high temperature
Railway applications

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
MIL-STD-810B-METHOD 508
EN 45545: 2013
DIN5510-2
UL94 V2 approved
HF approved

170-12500 HEGP25-PET-BK (50) Datasheet
