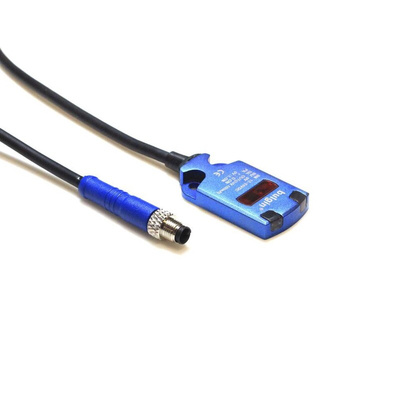

SLLN3002CL, Bulgin Diffuse Photoelectric Sensor, 2 mm → 30 mm Detection Range, Фотоэлектрический датчик

Simple, secure and efficient design.
Only require one sensor for your system as opposed to using other technology, such as retro-reflective or through beam.
Achieve a watertight and dustproof seal to any standard M5 interface.
Highly robust casing material Stainless Steel 316.
Withstands a high degree of physical impact.
Vibration tested to 10-50Hz double amplitudes. X.Y. Z. each direction 2 hours.
Shock and Bump tested to 1000m/s², X.Y.Z. each direction 6 times.

Bulgin's slim line photoelectric sensor range offers a high degree of mechanical and electrical stability. A cost effective and flexible sensing solution. Designed specifically for manufacturing automation and industrial automation Sensing operations.

Light Source=Red LED
Sensing Distance=2 - 30mm
Sensing Method=Reflective, Diffuse
Voltage - Supply=12 - 24 VDC
Response Time=<0.5 ms

Body Material=SUS 316L
Connection Method=Cable
Cable Length=2M
Operating Temperature=-10 +50 °C
Operating Humidity=35% - 85%(No condensation)
Vibration Resistance=10-50Hz double amplitudes, X. Y. Z. each direction 2 hours
Shock Resistance=1000m/s², X.Y.Z each direction 6 times

Datasheet SLLN3002CL
