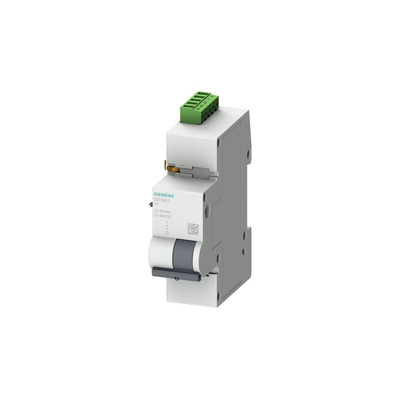

5ST3053, Siemens Sentron Remote Controlled Mechanism for use with Miniature Circuit Breakers

Siemens Remote Interface, 30V AC/48V DC Operating Voltage, 151g Weight - SENTRON Series - 5ST3053

Monitor your circuit breakers from a distance with this remote interface from Siemens. The device detects when electrical problems trip your MCB and lets you reset it without leaving your station. It's a modular unit that pairs with four-pole MCBs or three-pole RCBOs, which means you can keep a check on electrical safety and prevent unnecessary downtime. Simply link it to a component and snap it onto a DIN rail for fuss-free installation. For versatility, you can use it with AC and DC power supplies. You'll find this module well-suited to automated factory installations, medical systems and distribution panels.

Features & Benefits

• IP20-rated housing guards against objects larger than 12.5mm, meaning it's touch-proof
• 10,000 electrical switching cycles for reliable performance time after time
• Takes 0.5 to 1.5mm² size wires (14 to 30 AWG), so it's a versatile option for use with different circuits

How much space does this remote interface take up in a distribution panel?

The unit has compact dimensions of 90 (H) x 27 (W) x 70mm (D), which means it makes the most of space in your installation.

Datasheet 5ST3053

Catalogue - Miniature Circuit Breakers

Manual - 5ST3053
