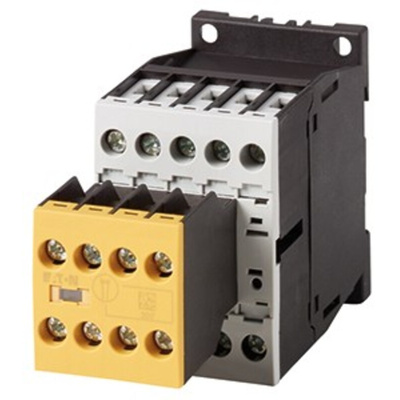

191720 DILAS-R44(24VDC), Eaton Contactor, 24 V dc Coil, 4 A, 415 V ac, Реле

The DILAS safety relay, available in three different coil voltages, rounds out Eaton’s product range in this area. The following drive options are available: 110V 50Hz, 120V 60Hz, 230V 50Hz, 240V 60Hz, 24VDC (RDC24). The contactor’s yellow cover allows for quick and easy identification. The built-in inspection window directly above the switch-position indicator makes it possible to monitor the operating status at any point in time. This reliably prevents the contactor from being activated manually.

Safe status monitoring of the contactor (inspection window) manual activation is not possible
Eligible to be used for Emergency-stop application with controlled start (category 4)
Reliable and self-monitoring machine-control circuits
Interlocking opposing contacts
Mirror contacts
Highlighted in yellow (RAL1004)
Reliable screw terminals
Top-mounted and non-detachable auxiliary contact (at the front)

Note

Eaton formerly known as Moeller

Datasheet 191720
