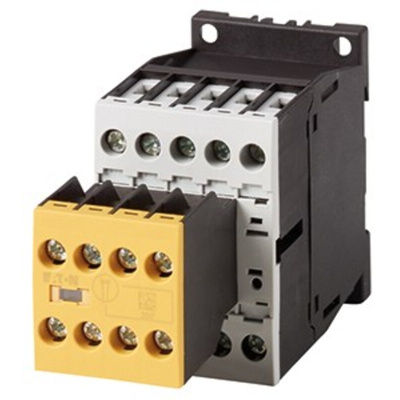

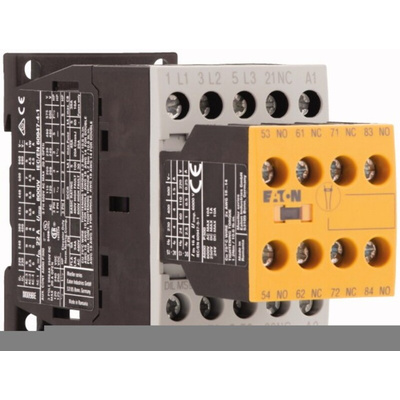

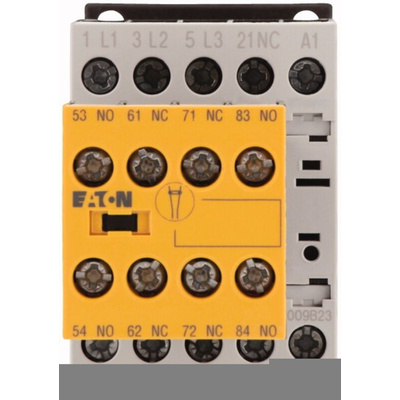

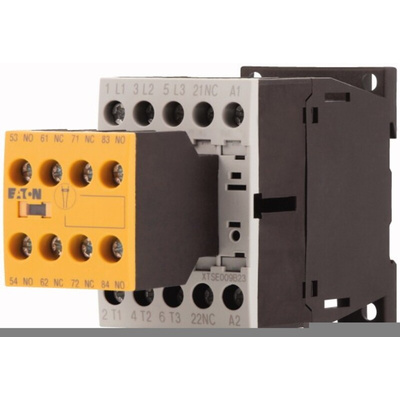

191762 DILMS9-23(24VDC), Eaton Contactor, 24 V dc Coil, 3-Pole, 9 A, 3NO, 400 V ac, Реле

Eaton Contactor, 5 Auxiliary Contacts, 400V AC Contact Voltage Rating - DILMS Series - 191762 DILMS9-23(24VDC)

When you need a tamper-proof contactor for use where safety is a priority, choose this 3-pole contactor from Eaton. It comes with a fixed auxiliary contact block to prevent removal and manual operation. A bright yellow housing makes it easy to identify in your system. The interlocking, opposing auxiliary contact elements and mirror contacts give you dependable switching and status monitoring. Use it with slightly inductive loads to control the running of induction motors or in emergency stop applications.

Features & Benefits

• Screw terminals for the secure attachment of wires
• Compact dimensions of 45 (L) x 117 (W) x 68mm (D) save space in your panel
• Contact voltage rating of 400V AC for use in high-power systems
• Rear fixing holes for quick mounting on a panel
• Switch position indicator makes it easy to check contactor status

What's the safe operating temperature range of this contactor?

This contactor has a wide operating temperature range of -25°C to +60°C, so you can use it in the harsh conditions that are typical in manufacturing, transportation and construction industries.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILMS9-23(24VDC)

Instruction Sheet - DILMS, DILAS, XTSE, XTRE Safety Contactors
